ImGuin

Updated to latest ImGui/CImGui version: : v1.91.6dock (2024/12)

This project is my experiment project to use Nim language, ImGui, ImPlot, futhark and etc.

  • Notice
    It may be better to use the mainstream project nimgl/imgui (ImGui v1.85)
    ,updated project nimgl-imgui (ImGui v1.89.9) ,sub project nim_implot and test project nimgl_test.

Usage: Sample program and run

Prerequisites

  • Nim-2.0.14 or later

  • Windows10 or later
    MSys2/MinGW command line tools (Unix tools), make, cp, rm, git, ...etc

  • Linux Mint 22 (or Ubuntu / Debian families )

    $ sudo apt install gcc g++ make git
    $ sudo apt install xorg-dev libopengl-dev libgl1-mesa-dev
$ sudo apt install libglfw3 libglfw3-dev libsdl2-dev

Install

nimble uninstall imguin  # Remove old versions if exists.
nimble install https://github.com/dinau/imguin

Build examples

  1. First clone this project,

    git clone https://github.com/dinau/imguin

  2. Sample program is here, examples. For instance glfw_opengl3_base.nim,

    cd imguin/examples/glfw_opengl3_base
make  # or make run

    After build, run ./glfw_opengl3_base(.exe)
    Compiation options depend on ./config.nims and ./Makefile.

  3. For selecting static link or dynamic link ,read this examples/README.md.

Available libraries

Library name
v ImGui / CImGui Base library
v ImPlot / CImPlot
v ImNodes / CImNodes
v ImGuizmo / CImGuizmo
v ImGui-Knobs/ CImGui-Knobs
v ImGuiFileDialog / CImGuiFileDialog
... ... ...
x ImGuiColorTextEdit / cimCTE 2025 ?

Frontends and Backends

GLFW SDL2 SDL3
OpenGL3
backend		 v v v
SDL2
backend		 - ? - 2025?
SDL3
backend		 - - ? 2025?

Screen shot (examples)

These screen shots are on Windows10.

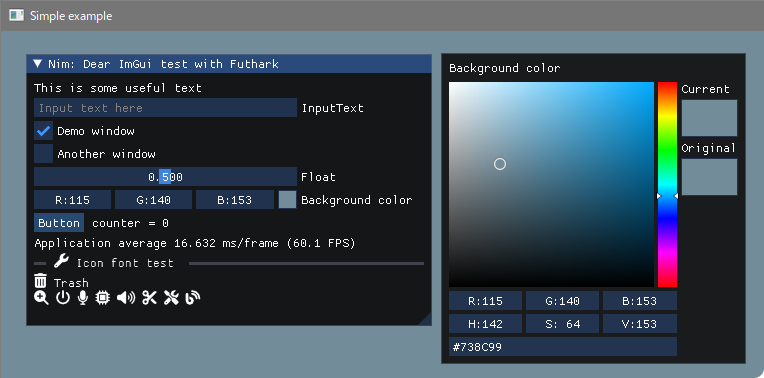

glfw_opengl3

Basic example with icon fonts

alt

  • Build

    pwd
examples/glfw_opengl3
make        # or make run

    or

    nim c glfw_opengl3.nim    # or  nim c -r glfw_opengl3.nim   or   nim r glfw_opengl3.nim

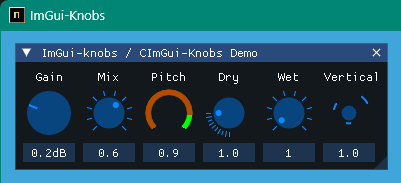

glfw_opengl3_imknobs

https://github.com/altschuler/imgui-knobs

cimgui-knobs sources have been contributed from system64MC / PR (2024/12). Thank you.

alt

  • Build

    pwd
examples/glfw_opengl3_imknobs
make

    or

    nim c -d:ImKnobsEnable --warning:HoleEnumConv:off glfw_opengl3_imknobs.nim

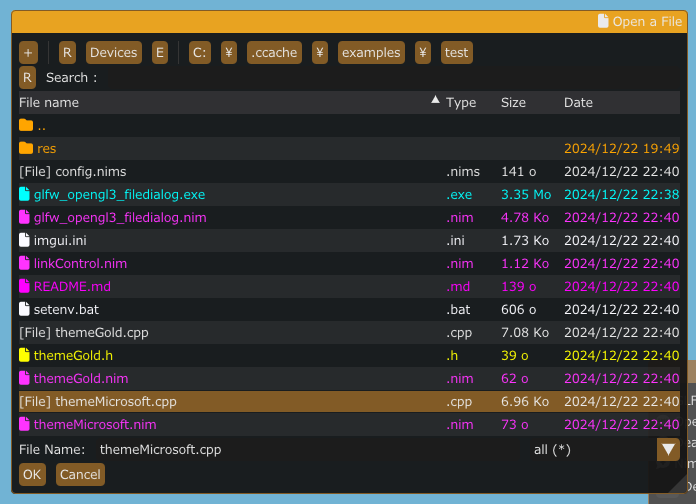

glfw_opengl3_filedialog

ImGuiFileDialog / CImGuiFileDialog

alt

  • Build

    pwd
examples/glfw_opengl3_filedialog
make

    or

    nim c -d:ImGuiFileDialogEnable  glfw_opengl3_filedialog.nim

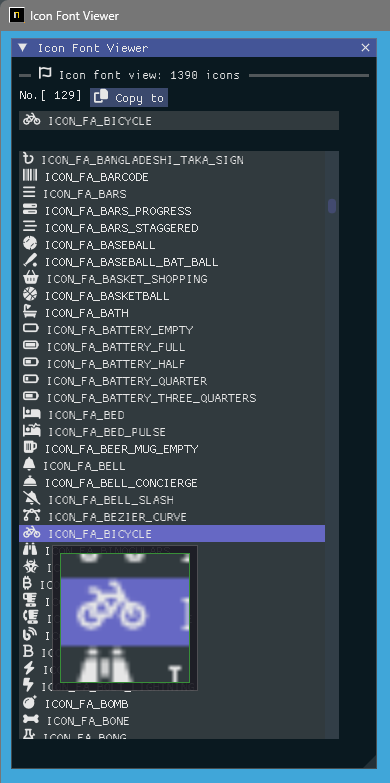

glfw_opengl3_iconfont_viewer

Icon font viewer and magnifying glass

alt

  • Build

    pwd
examples/iconFontViewer
make

    or

    nim c iconFontViewer.nim

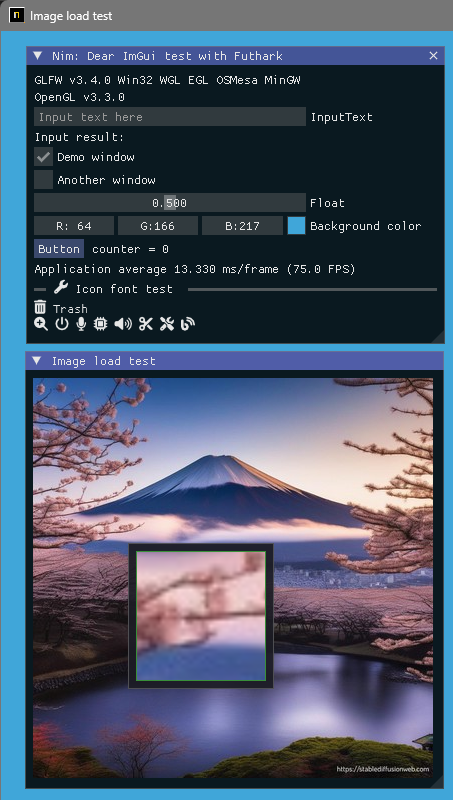

glfw_opengl3_image_load / sdl2_opengl3 / sdl3_opengl3

Image load and magnifying glass

alt

  • Build

    pwd
examples/glfw_opengl3_image_load
make

    or

    nim c glfw_opengl3_image_load.nim

  • Build sdl2 version

    pwd
examples/sdl2_opengl3
make

    or

    nim c -d:SDL sdl2_opengl3.nim

  • Build sdl3 version
    Only windows OS at this moment and WIP.

    pwd
examples/sdl3_opengl3
make

    or

    nim c -d:SDL sdl3_opengl3.nim

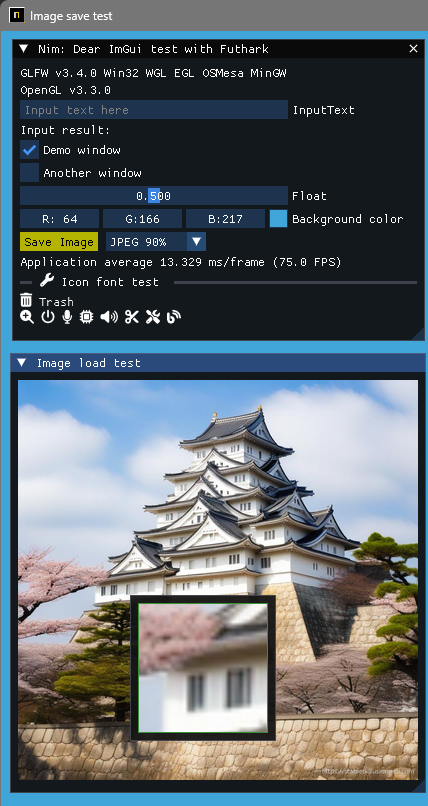

glfw_opengl3_image_save

Image load / save and magnifying glass
It can save a screen shot as [ jpg, bmp, png or tga ] file.

alt

  • Build

    pwd
examples/glfw_opengl3_image_save
make        # or make run

    or

    nim c glfw_opengl3_image_save.nim

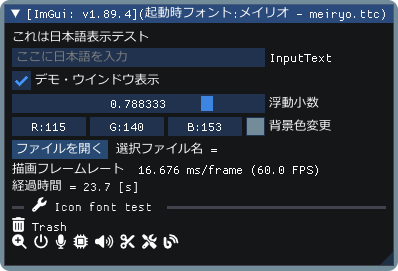

glfw_opengl3_jp

Showing UTF-8 text and input text with a local country language.
alt

  • Build

    pwd
examples/glfw_opengl3_jp
make        # or make run

    or

    nim c glfw_opengl3_jp.nim

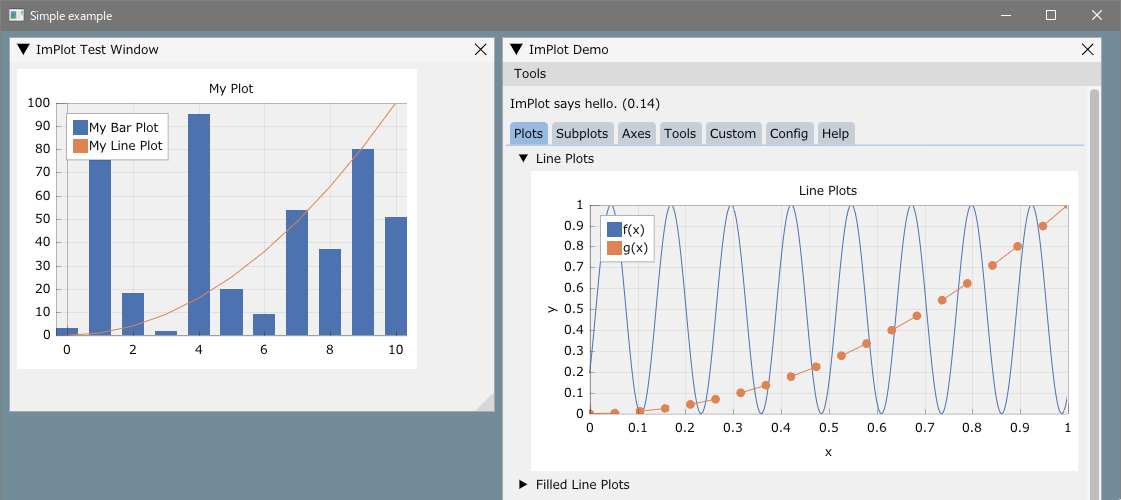

glfw_opengl3_implot

Showing ImGui demo with ImPlot demo.
alt

  • Build

    pwd
examples/glfw_opengl3_implot
make        # or make run

    or

    nim c -d:ImPlotEnable glfw_opengl3_implot.nim

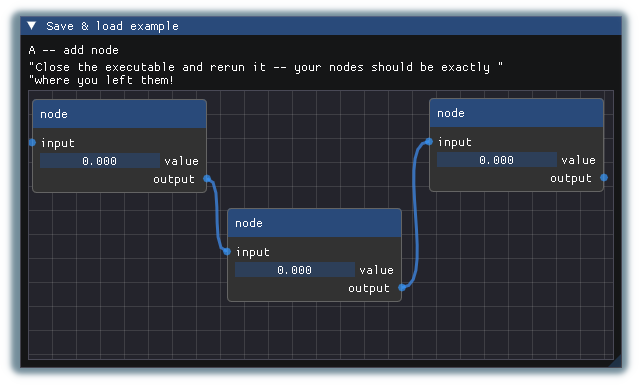

glfw_opengl3_imnodes

alt

  • Build

    pwd
examples/glfw_opengl3_imnodes
make        # or make run

    or

    nim c -d:ImNodesEnable glfw_opengl3_imnodes.nim

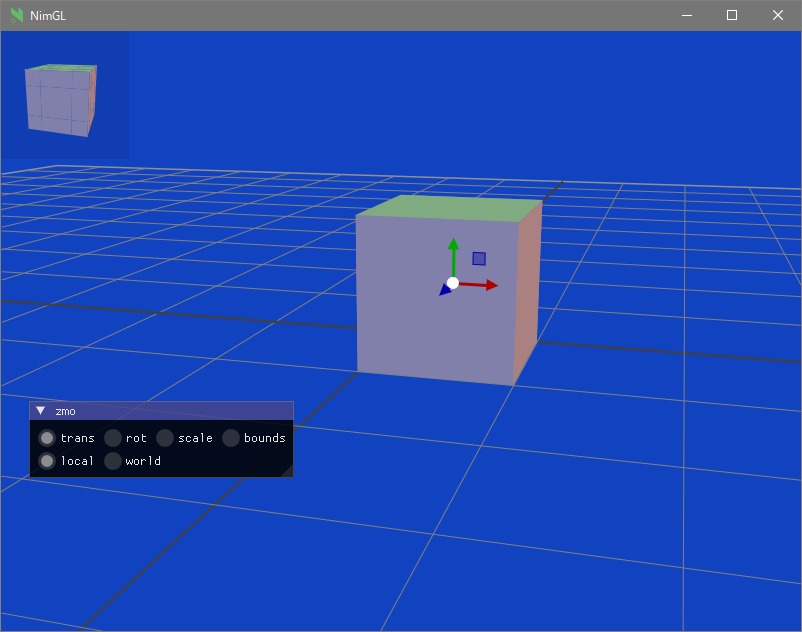

glfw_opengl3_imguizmo

alt

  • Build

    pwd
examples/glfw_opengl3_imguizmo
make        # or make run

    or

    nim c -d:ImGuizmoEnable glfw_opengl3_imguizmo.nim

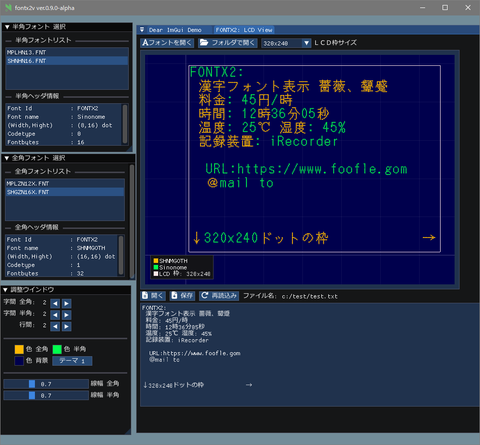

My test app movie using imguin

Sample movie,Youtube

Cross compilation: Generating Windows application binary(*.exe) on Linux OS

See:
Cross compilation to Windows, linker error (unrecognized option '-z'
https://nim-lang.org/docs/nimc.html#crossminuscompilation-for-windows

For example on Linux Mint 22 and so on,

pwd
examples
cd glfw_opengl3
make win

or

nim c -d:mingw glfw_opengl3

or

nim c --os:windows glfw_opengl3

glfw_opengl3.exe will be generated in the current folder.

Update / Downgrade Dear ImGui and CImGui

Prerequisite

  1. Git installed.

  2. Installed MSys2/MinGW command line tools (Unix tools), make, cp, rm, ...etc

  3. Windows10 or later Clang/LLVM refer to Futhark installation.

    nimble install futhark

    It must exist libclang.a file in the library path (e.g. in c:llvmlib).

  4. Linux Debian 12 Bookworm

    sudo apt install  clang-16
nimble install --passL:"-L/usr/lib/llvm-16/lib" futhark

Important Notice: Confirm Futhark version is v0.13.6 at this time. (2024/09)

nimble dump futhark

name: "futhark"
version: "0.13.6"
author: "PMunch"
desc: "A package which uses libclang to parse C headers into Nim files for easy interop"
license: "MIT"
...

Update / Downgrade ImGui/CImGui

  1. Compose development folders
    First move to your working folder you like, then

    mkdir imguin_dev
cd imguin_dev
git clone https://github.com/dinau/imguin
cd imguin

  2. Clone ImGui/CImGui etc. sources at once forever

    pwd
imguin
make clonelibs

    Cloned libraries are under ../libs/ folder

  3. Recursively update the sources using git Pull or fetch command in the each library folder,
    ../libs/cimgui
    ../libs/cimguizmo
    ../libs/cimnodes
    ../libs/cimplot

  4. Checkout arbitrary version with git command in the respective folder

  5. Specify your Clang include path to ClangIncludePath in imguin/src/imguin/cimgui.nim.

  6. Generate the definition file uisng Futhark,

    pwd
imguin
make gen

  7. Install updated files
    Properly edit the version info etc in imguin.nimble file, then

    pwd
imguin
nimble uninstall imguin  # Remove old versions if it exists.
nimble install

    That's all.
    Repeat from 3. if you'd like to update or downgrade to other version.

  • Confirmed version

    ImGui/CImGui Ver. ImGuin Ver. Date WindowsOS Linux Mint 22 Debian
    Bookworm (1)
    1.91.6dock 1.91.6.6 2024/12 OK OK -
    1.91.5dock - - - - -
    1.91.4dock 1.91.4.2 2024/12 OK OK -
    1.91.3dock 1.91.3.1 2024/10 OK (7) -
    1.91.2dock 1.91.2.0 2024/10 OK (7) -
    1.91.1dock 1.91.1.2 2024/09 OK (6) -
    1.91.0dock 1.91.0.0 2024/08 OK - (7)
    1.90.4dock 1.90.4.2 2024/02 OK - OK (4)
    1.90.1dock 1.90.1.0 2024/01 OK - NG/OK(1)(3)(4)
    1.89.9dock 1.89.9.8 2023/12 OK - NG/OK(1)(3)(4)

    (1): Except imnodes and SDL2 example.
    (2): Doesn't work well.
    (3): Works well only if it is compiled debug mode.
    (4): Use nim-2.0.2
    (5): I don't know why can't be compiled on Linux.
    (6): OK: Except ImNodes example
    (7): Not checked at this moment.

Selection backend compiler

You might be able to use another C/C++ compiler,
Clang, vcc(Visual Studio C/C++) , zig cc
by changing variable TC in examples/config.nims.common.

TODO

  1. Whether can it use cimgui.dll ? (Now it can only be static link) Closed. Only be static link.
  2. Easier compilation for SDL2 app. (2024/09) Done.
  3. Added: ImNodes/CImNodes (2023/10) Done
  4. Unfortunately ImGui 1.89.7 dosn't work well at this moment.(2023/07) Done. (2023/08)
  5. Whether can it do nimble install imguin ? Done (2023/09) (#Issue 13)
  6. Add Font Awesome (Icon Font) demo. Done (2023/04).
  7. Can it compile with MSVC (--cc:vcc) ? Done. Except SDL2 demo. (2023/03), TODO (2024/09)
  8. Can it compile with Clang (--cc:clang) ? Done. (2023/03)
  9. Add SDL2 example. Done. examples/sdl2_opengl3 (2023/03)
  • First step is done. (2023/03)

Compressing binary file

Install UPX with MSys console on WindowsOS,

pacman -S mingw-w64-x86_64-upx

For compression exe file,

pwd
examples
cd glfw_opengl3_implot
make upx
                       Ultimate Packer for eXecutables
                          Copyright (C) 1996 - 2024
UPX 4.2.4       Markus Oberhumer, Laszlo Molnar & John Reiser    May 9th 2024

        File size         Ratio      Format      Name
   --------------------   ------   -----------   -----------
   7117824 ->   1217024   17.10%    win64/pe     glfw_opengl3_implot.exe

Decompressing,

make dupx

Result in,

GCC + UPX : GCC Clang + UPX : Clang MSVC(vcc) + UPX : MSVC
glfw_opengl3.exe 804 KB : 2360 KB 720 KB : 2200 KB 742 KB : 2070 KB
glfw_opengl3_implot.exe 1220 KB : 7120 KB 940KB : 4200 KB 945 KB : 3810 KB

GCC: v14.2.0, Clang: v18.1.8, MSVC: 2022

My tools version

Windows11 (main)

  • Nim Compiler Version 2.2.0

  • GCC (Rev1, Built by MSYS2 project) 14.2.0

    pacman -S mingw-w64-ucrt-x86_64-gcc

  • Clang version 19.1.6

    pacman -S mingw-w64-ucrt-x86_64-clang

  • Visual Studio C++/C 2022

  • git version 2.46.0.windows.1

  • SDL2.dll: 2.30.7

  • Make: GNU Make 4.4.1

  • MSys2/MinGW tools

Linux Mint 22

  • Nim Compiler Version 2.2.0
  • gcc 13.2.0
  • SDL2: 2.30.0
  • make: GNU Make 4.3
  • git version 2.43.0

Other link

  • File Dialog

    • Cross Platform File Dialog for Dear-ImGui
    • ImGui File Dialogs - CLI and Client Library
    • A Dear ImGui based File Dialog without any extra dependencies

  • Other

    • Node Editor built using Dear ImGui

  • GUI

    • nuklear-nim (Public archived)

  • Graphical

    • Immediate Mode Plotting

Similar project ImGui / CImGui

Language Project
Nim Compiler ImGuin, Nimgl_test, Nim_implot
Lua Script LuaJITImGui
Zig, C lang. Compiler Dear_Bindings_Build
Zig Compiler ImGuinZ
NeLua Compiler NeLuaImGui
Python Script DearPyGui for 32bit WindowsOS Binary

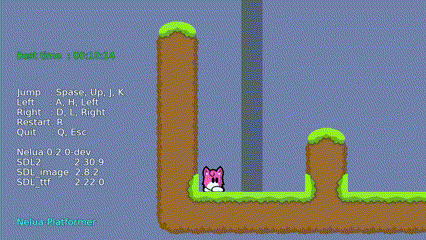

SDL Game tutorial Platfromer

ald

Language Project
Nim Compiler Nim-Platformer/ sdl3_nim
LuaJIT Script LuaJIT-Platformer
Nelua Compiler NeLua-Platformer
Zig Compiler Zig-Platformer

Other link2

  • https://github.com/SpartanJ/SOIL2
    SOIL2 is a tiny C library used primarily for uploading textures into OpenGL.

Memo

error: assignment to 'char **' from incompatible pointer type 'const char * const*' [-Wincompatible-pointer-types]
type ConstCstring {.importc: const char *.} = cstring
