LoRa Mesh

Lora-can

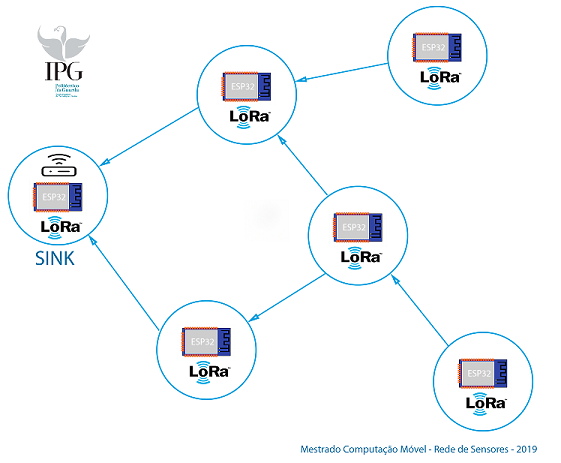

A mesh network is essentially characterized by a typology in which all nodes in network infrastructure communicate directly between them, dynamically, without taking into account any hierarchically. Thus, the nodes cooperate with each other, in order to rout the data efficiently. This lack of dependence between us allows each one to participate in the transmission and reception of information between them. Mesh networks can be organized dynamically through their ability to self-configuration, allowing the dynamic distribution of information flows, especially in situations of failure in one of these knots.

How to install

1. Clone this repository: $ git clone https://github.com/daeynasvistas/LoRa-Mesh/

2. Using VisualStudio Code (Platformio):

   2.1. You can open ESP32 paste and Arduino paste in separate projects.

How it works

1. All nodes have a unique ID (EEPROM)
2. When starting, it is verified whether the node is Sink (has access to the internet) or not

 // Este node e servidor
// 0 = Servidor internet
// 1 = Vizinho de servidor internet
// 2 = Vizinho com um Vizinho de um servidor internet
byte isServer = getIsServer();
String nodeFunction[ 4 ] = { " SINK " , " ESTRADA " , " CAMINHO " , " SOLTEIRO " };

3. Each node sends on Broadcast your neighbors table every 10 messages received

     if (msgCount> 10 )
    {
      message = sendTable ();
      sendMessage (message, 255 );

4. Upon receiving the table is verified if there is any sink (identified in the broadcast as id = 0)

     if (msgCount> 10 )
    {
      message = sendTable ();
      sendMessage (message, 255 );

5. The Sink's table known in each node and known to each neighbor

String nodeFunction[ 4 ] = { " SINK " , " ESTRADA " , " CAMINHO " , " SOLTEIRO " };

  // Posicionamento dos servidores na mesh
   switch (incomingMsgHand) {
   case 0 :
       // statements
        if (! arrayIncludeElement (myServers,sender,maxTableArrayServers)){
           Serial. println ( " Encontrei um SINK! " +sender);
           arrayAddElement (myServers,sender,maxTableArrayServers);
           display. drawString ( 0 , 32 , " NOVO: " + String (sender));
        }
      destination = sender;
      break ;
   case 1 :
       // statements
        if (! arrayIncludeElement (myNeighbours,sender,maxTableArrayVizinhos)){
           Serial. println ( " Encontrei AUTOESTRADA para SINK! " +sender);
           arrayAddElement (myNeighbours,sender,maxTableArrayVizinhos);
           display. drawString ( 0 , 32 , " NOVO: " + String (sender));
        }
        if (isServer!= 0 ){
          destination = sender;
        }
       break ;
   case 2 :
       // statements
       Serial. println ( " Encontrei CAMINHO para SINK! " );
       break ;
   default :
       // statements
       break ;
   }

6. A JSON with sensor values ​​collected to the neighbor closest to a Sink is always sent

        } else {
           // enviar para mais próximo do SINK
           destination = myNeighbours[ 0 ];
           sendMessage (message, destination);
        }

Settings

To configure you must change main.cpp and include sensors you predict. ESP32 includes pound for BME and Arduino for DHT11

MAKEDATE METHOD ()

The project uses the #include pound <arduinojson.h> to build JSON that is sent in each node, it included or changing those you want.

 void makeData (){
// add some values
array. add (MAC); // <- Lora MAC
array. add ( 1556969160 ); // <-- Timestamp
array. add (bme. readTemperature ());
array. add (bme. readHumidity ());
array. add (bme. readPressure () / 100 . 0F );
array. add ( 0 );
array. add ( 0 );
array. add ( 0 );
array. add ( 0 );
array. add ( 0 );
array. add ( 0 );

 // serialize the array and send the result to Serial
// serialize the array and send the result to Serial
 serializeJson (doc, Values);
 serializeJson (doc, Serial);
 Serial. println ( " " );
}

Maximum value of nodes and sink

32 as maximum in the neighbors table .. or simply change dinamic array

byte const maxTableArrayVizinhos = 32 ; // quantidade de vizinhos pode ser aumentada conform memoria dispo
byte myNeighbours[maxTableArrayVizinhos] = {}; // address of vizinhos directos

byte const maxTableArrayServers = 4 ; // quantidade de servidores ao qual tenho acesso pode ser aumentada
byte myServers[maxTableArrayServers]     = {}; // address dos servidores que encontrei

Result

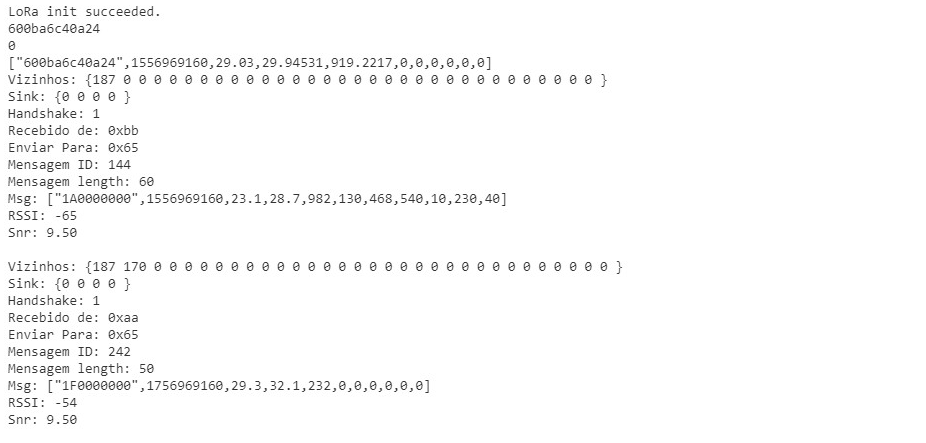

This is the result with serial.print in node sink, where all the sensors of all nodes come. Node Sink is responsible for sending JSON ... by Lora (Gateway), by MQTT or the method you prefer

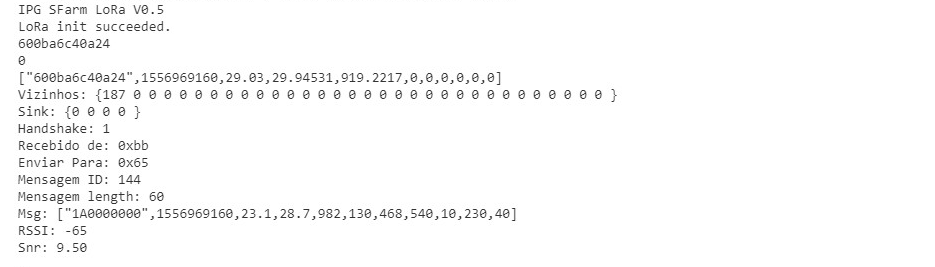

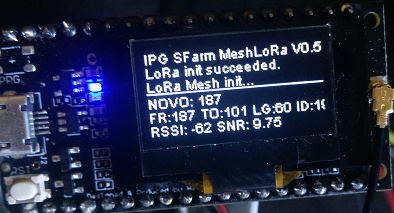

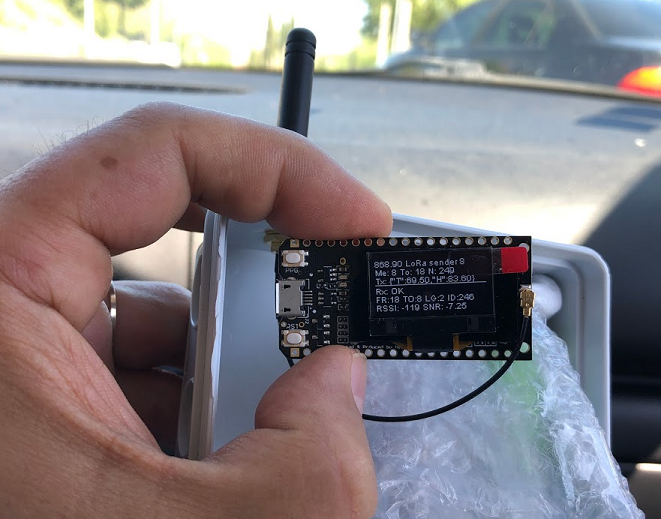

Discovery of a Node (187)

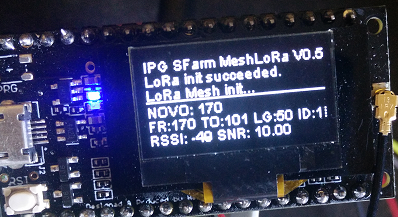

Discovery of a Node (170)

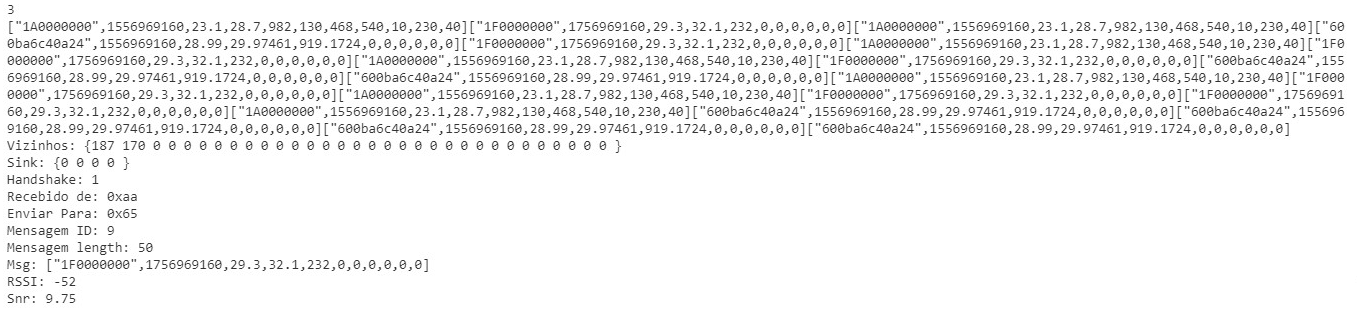

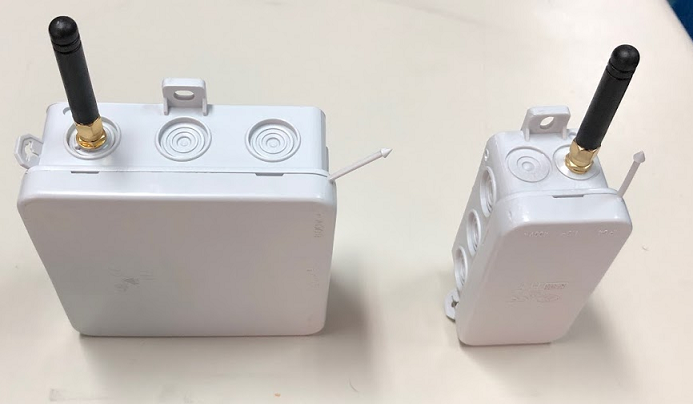

Collecting the values ​​of all nodes

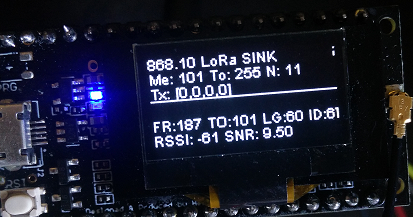

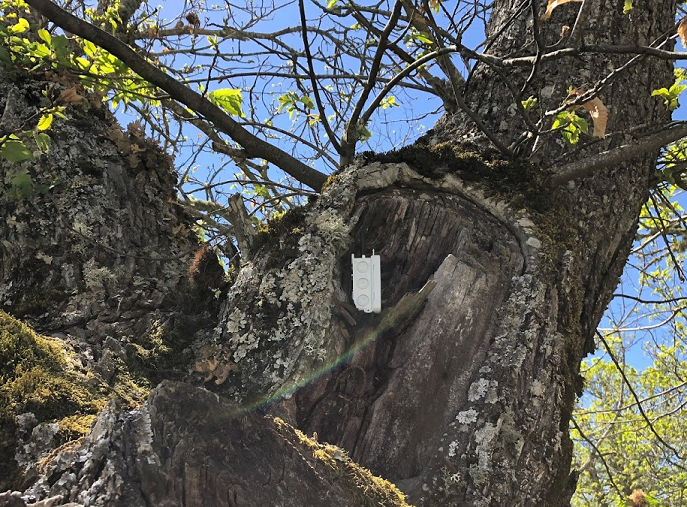

Sink to collect neighbors

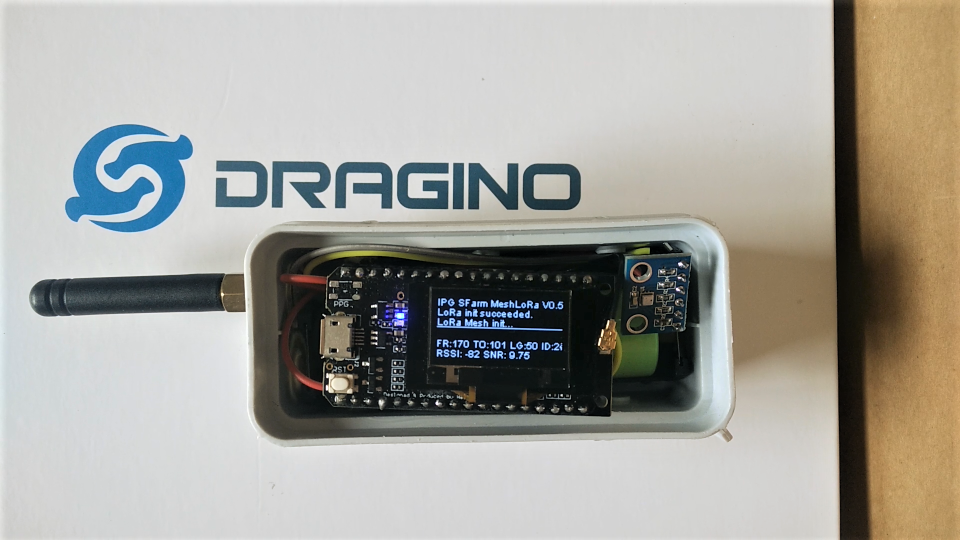

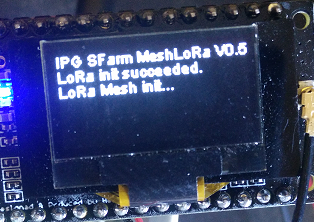

ESP32 result

Development
