SoftRF
1.6
DIY, multi-functional, compatible, sub-1 GHz ISM band radio based proximity awareness system for general aviation.
- IP65| Type | Protocol | FLARM | OGN tracker | PilotAware | Skytraxx | SoftRF |
|---|---|---|---|---|---|---|
| Radio | FLARM AIR V6 |
|
|
|
||
OGNTP |
|
|
||||
P3I |
|
|
||||
FANET+ |
|
|
||||
978 UAT |
|
|||||
1090 ES |
|
|
||||
SRD 860 |
|
|
||||
APRS |
|
|||||
Remote ID |
|
|||||
| Data | FLARM NMEA |
|
|
|
|
|
| Garmin GDL90 |
|
|
||||
MAVLINK |
|
|
|
|||
Dump1090 7 |
|
1 - it is necessary for a reader to distinguish the difference between statement "compatible" and statement "fully compatible".
SoftRF implements only a reasonable minimum of the protocols specs. No "bells and whistles" so far.
2 - FANET+ can not receive FLARM. However it is able to transmit it.
3 - valid for Prime Mark III , Prime Mark II , Dongle , Mini , Badge , Bracelet , Academy , Octave , Lego , Balkan and Midi Editions; valid for Standalone , UAV and Uni Editions with optional DIY SoftRF LoRa RF module
4 - Reception of traffic 'downlink' frames only. Valid for Uni Edition alone and for Standalone Edition with optional DIY SoftRF UAT module
5 - Reception of traffic 'downlink' frames only. Valid for ES Edition
6 - APRS is the only available with Ham Edition
7 - also known as "raw ADS-B"
| Model(s) | Platform | First appearance | Status | Notes |
|---|---|---|---|---|
| 1 Prime 2 Standalone 3 UAV 4 WebTop Serial |
Espressif ESP8266 |
Q4 2015 |  |
Prime model is no longer supported - use Prime MkII instead. |

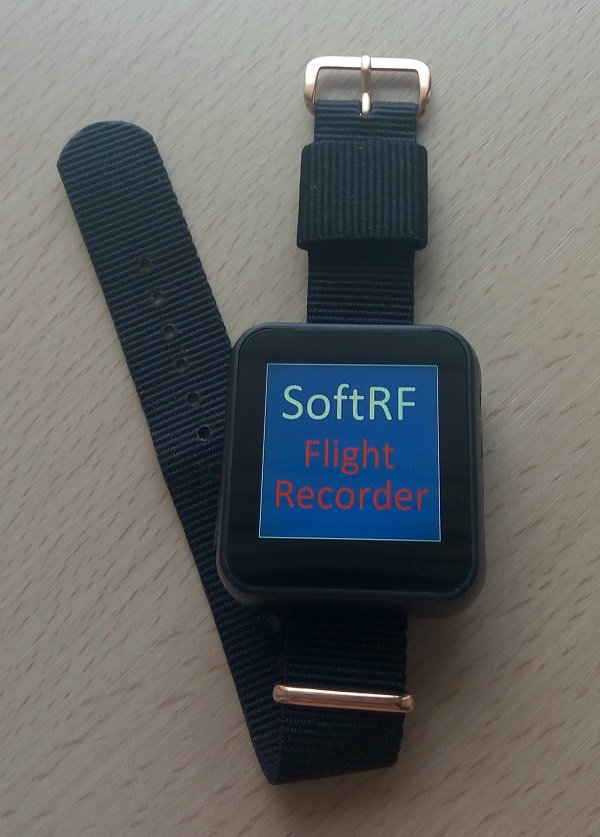

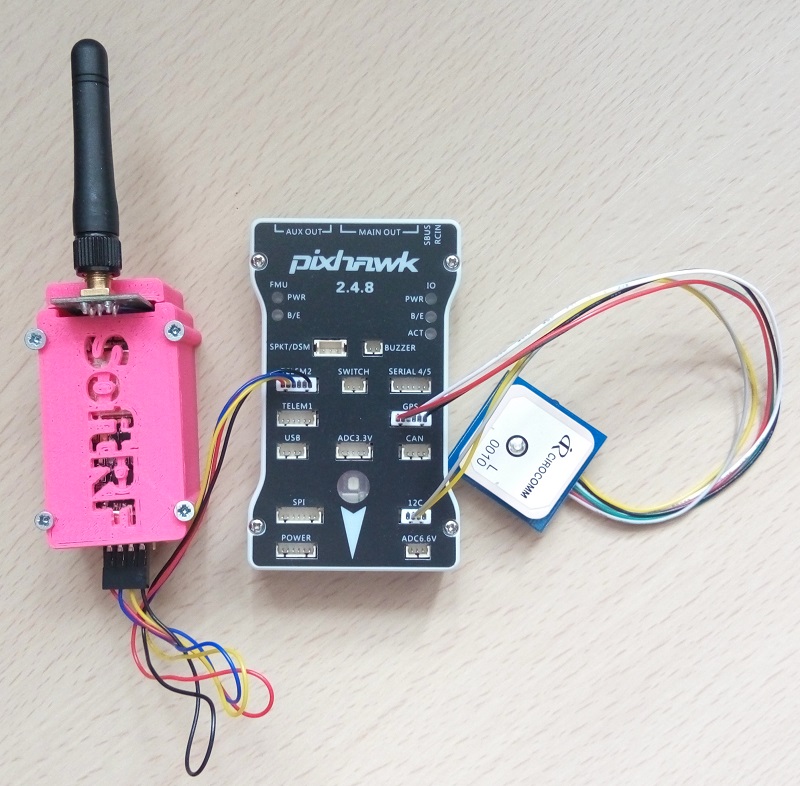

| 1 Prime Mark II 2 Standalone + adapter 3 UAV 4 SkyView EZ 5 Flight Recorder |
Espressif ESP32 |
Q1 2018 | |
1 today's best platform ; 2 holds FCC mark |
| 1 Raspberry Edition 2 SkyView Pi |
Broadcom BCM283X (Raspberry Pi) |
Q4 2018 | |
Good for use together with RTL-SDR dongles to achieve additional 1090ES (and 978UAT) ADS-B air traffic reception. |
| UAT module | Texas Instruments CC1310 |
Q1 2019 | |
Unique RF radio specs are useful for UAT978 ADS-B reception [ 1 , 2 , 3 ] |
| 1 Retro 2 Dongle 3 Bracelet |
STMicroelectronics STM32F103 and STM32L073 |
Q3 2019 | |
|
| Uni | Texas Instruments CC13x2R |
Q2 2020 | |
1 Unique RF radio specs are useful for UAT978 ADS-B reception ; 2 holds FCC/CE mark |
| Mini | Cypress PSoC 4100S |
Q3 2020 | |
1 good add-on candidate for modded Kobo e-Readers ; 2 holds FCC/CE mark |
| 1 Badge 2 Card 3 Cozy |
Nordic Semiconductor nRF52840 |
Q4 2020 | |
holds FCC/CE mark |

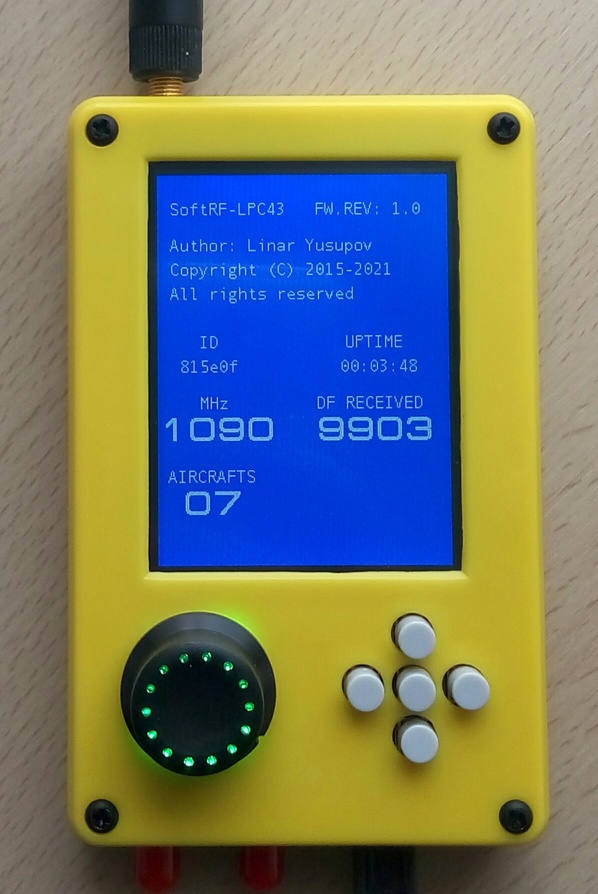

| ES | NXP Semiconductors LPC4320 |
Q2 2021 |  |
Unique RF radio specs are useful for 1090ES ADS-B reception [ 1 , 2 ] |
| 1 Academy 2 USB2BT |
Microchip (Atmel) SAM D21 |
Q4 2021 | |
good for teaching students of air traffic proximity awareness |
| Octave | ASR Microelectronics ASR6601 |
Q1 2022 | |
the best 'price per radio protocol' ratio on the market |
| 1 Lego 2 SkyView Pico |
Raspberry Pi Foundation RP2040 |
Q1 2022 | |
holds FCC/CE mark |
| Balkan | STMicroelectronics STM32WLE5 |
Q3 2022 | |
holds CE mark |
| WebTop USB | Espressif ESP32-S2 |
Q4 2022 | |
|
| Standalone upgrade |
Espressif ESP32-C3 |
Q1 2023 | |
RISC-V |
| 1 Prime Mark III 2 SkyView Pico 3 Ham 4 Midi |
Espressif ESP32-S3 |
Q1 2023 | |
|
| 1 Standalone upgrade 2 Eco 3 Duo |
Espressif ESP32-C6 |
Q1 2024 | |
2 RISC-V cores big.LITTLE |
| Academy upgrade |
Renesas RA4M1 |
Q1 2024 | |
|
| Academy | Silicon Labs EFx32 |
Q3 2024 |  |
|
| Academy | Nanjing Qinheng Microelectronics CH32V307 |
Q3 2024 | |
RISC-V IMAFC |
| Radio | Model(s) | First appearance | Status | Notes |
|---|---|---|---|---|
| Nordic Semiconductor nRF905 |
1 Prime 2 Standalone 3 UAV |
Q4 2015 | |
|
| Semtech SX1276 |
1 LoRa module 2 Prime Mark II 3 Raspberry Edition 4 Dongle 5 Academy |
Q4 2017 | |
|
| Texas Instruments CC1310 |
UAT module | Q1 2019 | |
|
| Semtech SX1231 |
Retro | Q3 2019 |  |
operates through OGN driver with OGNTP protocol only |
| Semtech SX1262 |
1 Prime Mark II 2 Mini 3 Badge 4 Lego 5 Balkan 6 Prime Mark III 7 Midi 8 Cozy |
Q1 2020 | |
|
| Texas Instruments CC13x2R |
Uni Edition | Q2 2020 | |
|
| Maxim Integrated MAX2837 and MAX5864 |
ES Edition | Q2 2021 | |
Software Defined Radio |
| NiceRF SA868 |
Ham Edition | Q3 2023 | |
VHF or UHF "Ham Radio" bands |
| Semtech LR1110 |
Card |
Q3 2024 | |
|
| Semtech LR1121 |
Q4 2024 | |
2.1 GHz S-band 2.4 GHz ISM |
| GNSS | Model(s) | First appearance | Status | Notes |
|---|---|---|---|---|
| Generic NMEA |
Standalone | Q4 2016 | |
|
| U-blox 6/7/8/9/10 |
1 Prime Mark II 2 Retro 3 Uni 4 Lego 5 Balkan 6 Prime Mark III |
Q2 2018 | |
|
| Hangzhou ZhongKe AT6558 |
1 Prime Mark II 2 Mini 3 Badge 4 Prime Mark III 5 Ham 6 Cozy |
Q2 2019 | |
|
| Sony CXD5603GF |
1 Dongle | Q4 2019 | |
|
| MediaTek MT3339 |
1 Raspberry 2 Uni 3 Academy 4 Lego |
Q3 2020 | |
|
| GOKE GK9501 |
Mini | Q3 2020 | |
|
| UniCore UC6580 |
Midi | Q3 2023 | |
|
| Airoha AG3335 |
Card |
Q3 2024 | |
