SwiftyFitsize

Example

After cloning or downloading the repository to the local area, please run pod install first, and then open SwiftyFitsize.xcworkspace

Requirements

iOS 9.0+
Xcode 10.2+
Swift 5+

Installation

Cocoapods

 use_frameworks!
pod 'SwiftyFitsize'

Swift Package Manager

 1. File > Add Packages
2. Search https://github.com/LinXunFeng/SwiftyFitsize.git
3. Select "Up to Next Major" with "1.4.1"

Exhibition

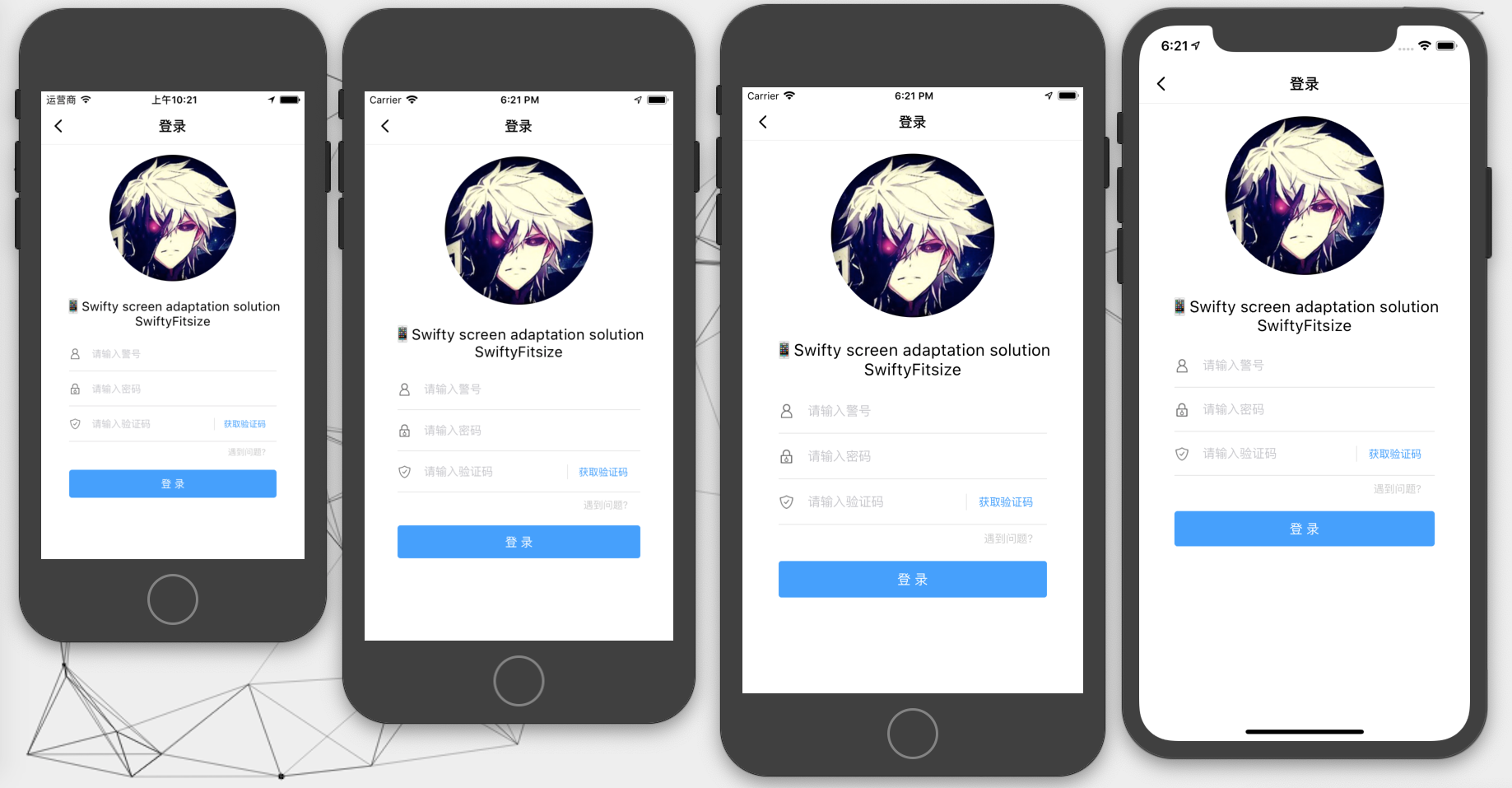

iPhone

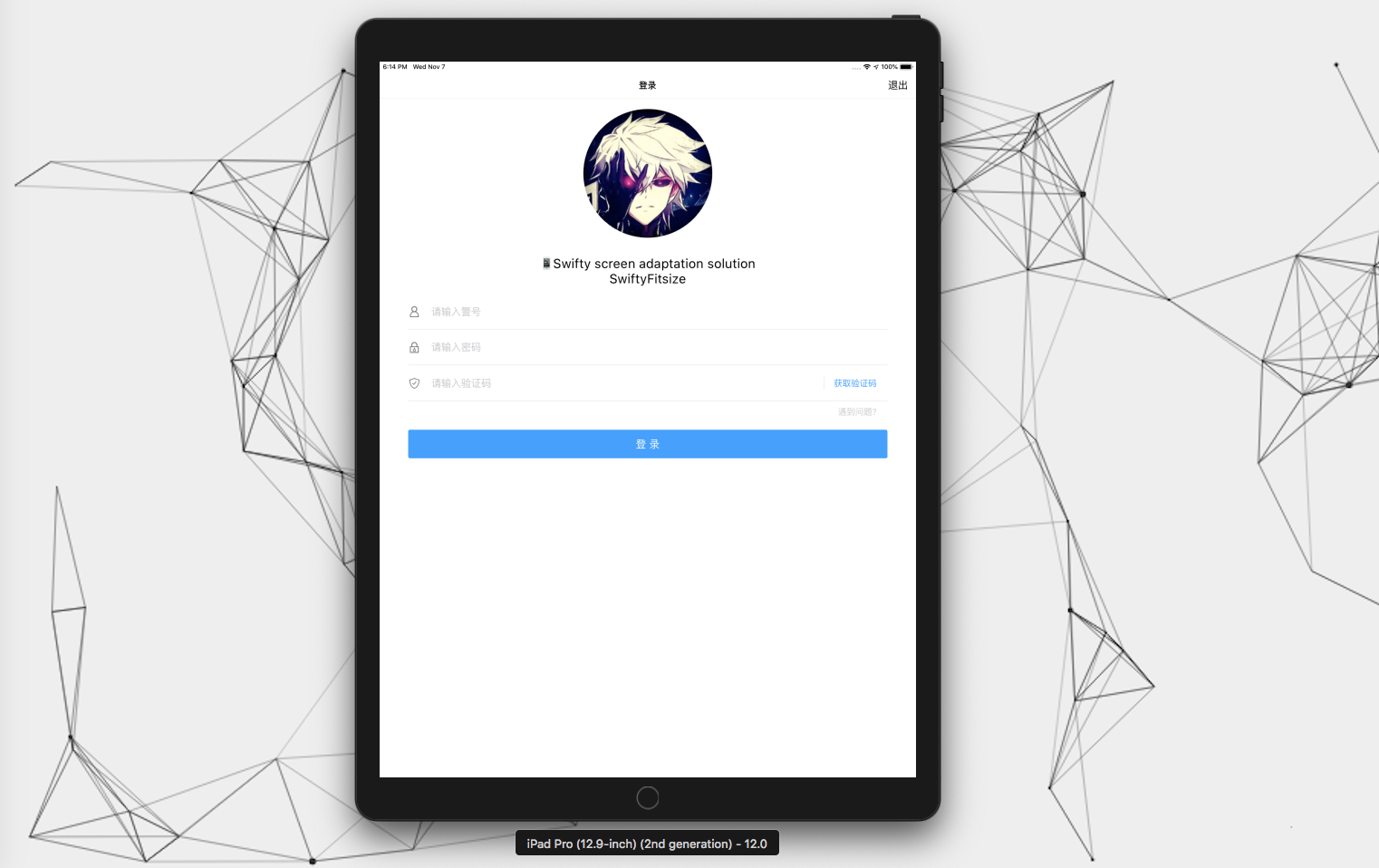

iPad

Usage

1. Operator

Whether it is ~ or ≈ the adaptation effect for iPhone is the same. For iPad , ≈ the width of iPad is too large, it will still be calculated according to the width ratio, and the display will be particularly bloated. At this ~ it will be more suitable for the display.
~ On the basis of ≈ , multiply the iPad iPadFitMultiple .
Generally, use it ~ .
The same is true for other operators. Please refer to the instructions below for details.

Operators	illustrate
`~`	Compare the width. When the device is `iPad` , `value` after adaptation will be multiplied to `iPadFitMultiple`
`≈`	Compare width, force adaptation, neither `iPhone` nor `iPad` will be multiplied with `iPadFitMultiple`
`∣`	Comparison height, corresponding to `~` , the entire screen height
`∥`	Comparative height, corresponding to `≈` , the entire screen height
`∣=`	Comparison height, corresponding to `∣` , height within the safe area
`∥=`	Comparison height, corresponding to `∥` , height within the safe area
`∣-`	Comparison height, corresponding to `∣` , remove the height within the safe area of the bang area
`∥-`	Comparison height, corresponding to `∥` , remove the height within the safe area of the bang area

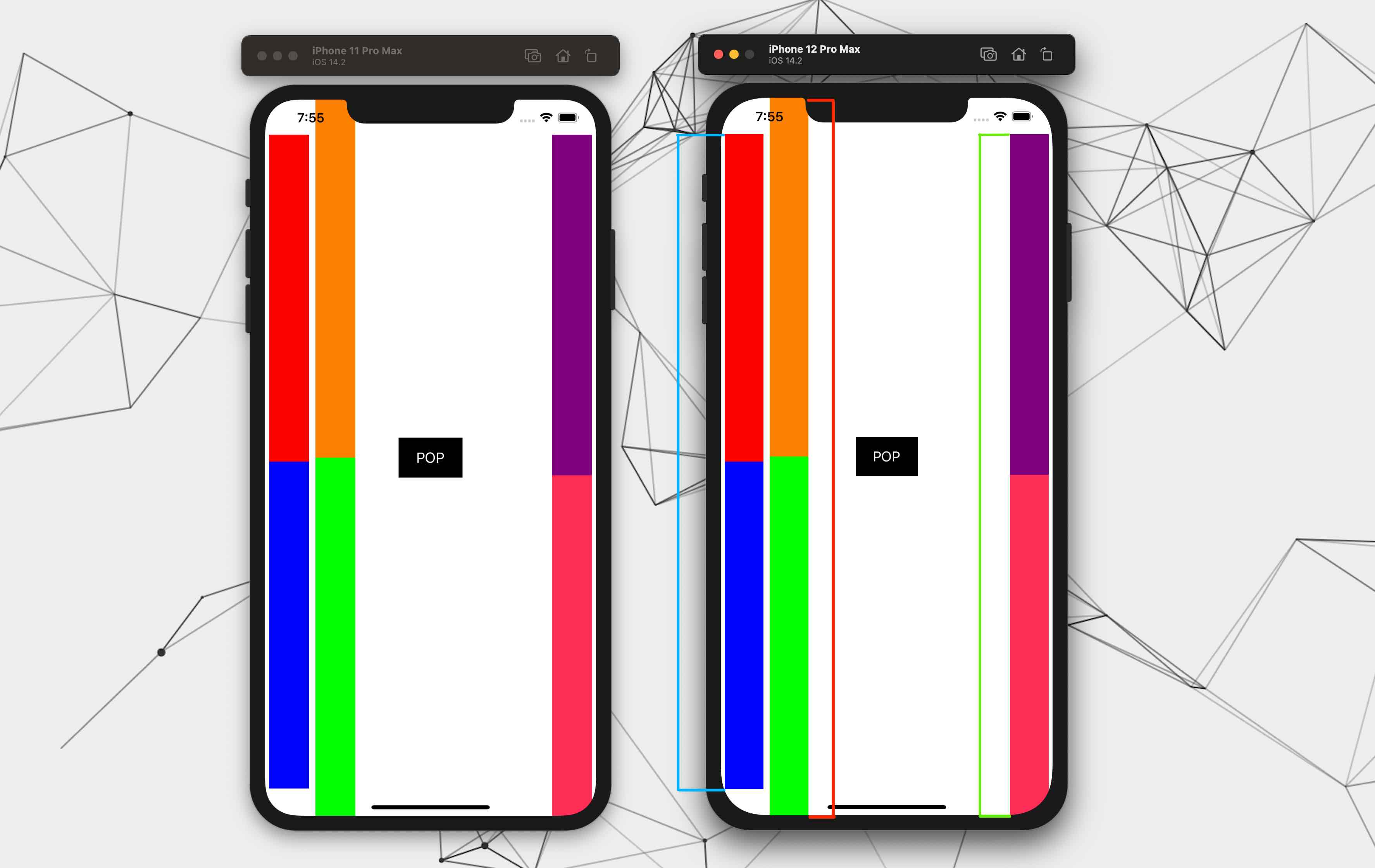

Comparison of height adaptation

Red: ∣ and ∥ , adapt to the height of the entire screen
Blue: ∣= and ∥= Adapt to the height of the central security area
Green: ∣- and ∥- adapt to a safe area including the bottom

Height fit comparison

Give an example

~ : When the device is iPad , the adapted value will be multiplied with iPadFitMultiple

 100 ~
UIFont . systemFont ( ofSize : 14 ) ~
CGPoint ( x : 10 , y : 10 ) ~
CGRect ( x : 10 , y : 10 , width : 100 , height : 100 ) ~
UIEdgeInsetsMake ( 10 , 10 , 10 , 10 ) ~

≈ : (option + x) The adapted value will not be multiplied by iPadFitMultiple

 100 ≈
UIFont . systemFont ( ofSize : 14 ) ≈
CGPoint ( x : 10 , y : 10 ) ≈
CGRect ( x : 10 , y : 10 , width : 100 , height : 100 ) ≈
UIEdgeInsetsMake ( 10 , 10 , 10 , 10 ) ≈

Modify参照宽度,参照高度,是否为iPhoneX系列的参照高度and iPadFitMultiple can call the following method

/// 设置参照的相关参数
///
/// - Parameters:
///   - width: 参照的宽度
///   - height: 参照的高度
///   - isIPhoneXSeriesHeight: 是否为iPhoneX系列的参照高度
///   - iPadFitMultiple: iPad 在适配后所得值的倍数 (0 , 1]
SwiftyFitsize . reference (
  width : 414 ,
  height : 896 ,
  isIPhoneXSeriesHeight : true ,
  iPadFitMultiple : 0.5
)

2. Support xib and storyboard

 enum SwiftyFitType : Int {
    /// Original Value
    case none = 0
    /// ~
    case flexibleWidth = 1
    /// ≈
    case forceWidth = 2
    /// ∣
    case flexibleHeight = 3
    /// ∥
    case forceHeight = 4
    /// ∣=
    case flexibleSafeAreaCenterHeight = 5
    /// ∥=
    case forceSafeAreaCenterHeight = 6
    /// ∣-
    case flexibleSafeAreaWithoutTopHeight = 7
    /// ∥-
    case forceSafeAreaWithoutTopHeight = 8
}

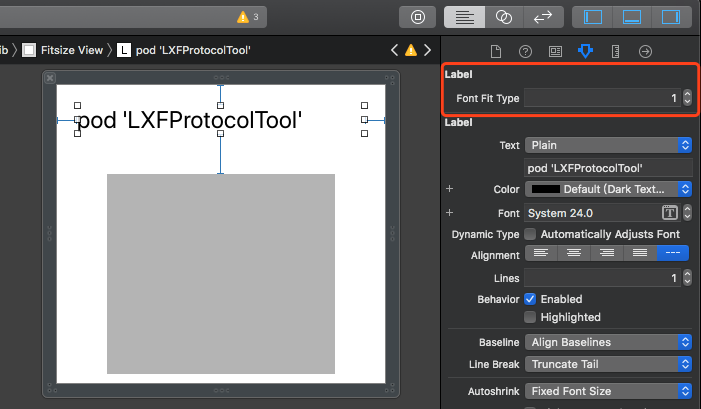

Font Fitsize

Supported UI controls are: UILabel UIButton UITextView UITextField

Please refer to enum SwiftyFitType above FontFitType

xib-font

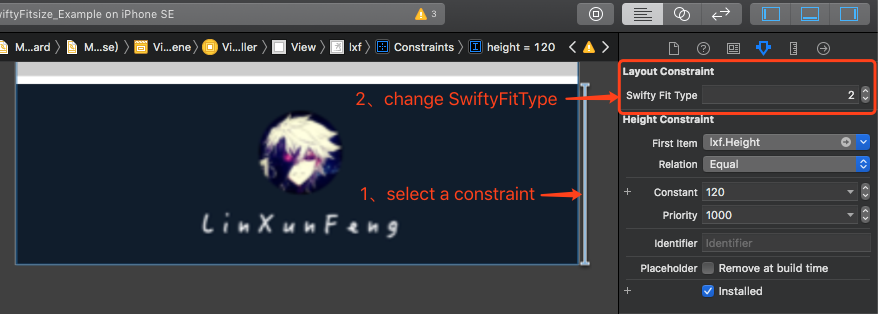

Constraint Fitsize

Constraint adaptation

xib-font

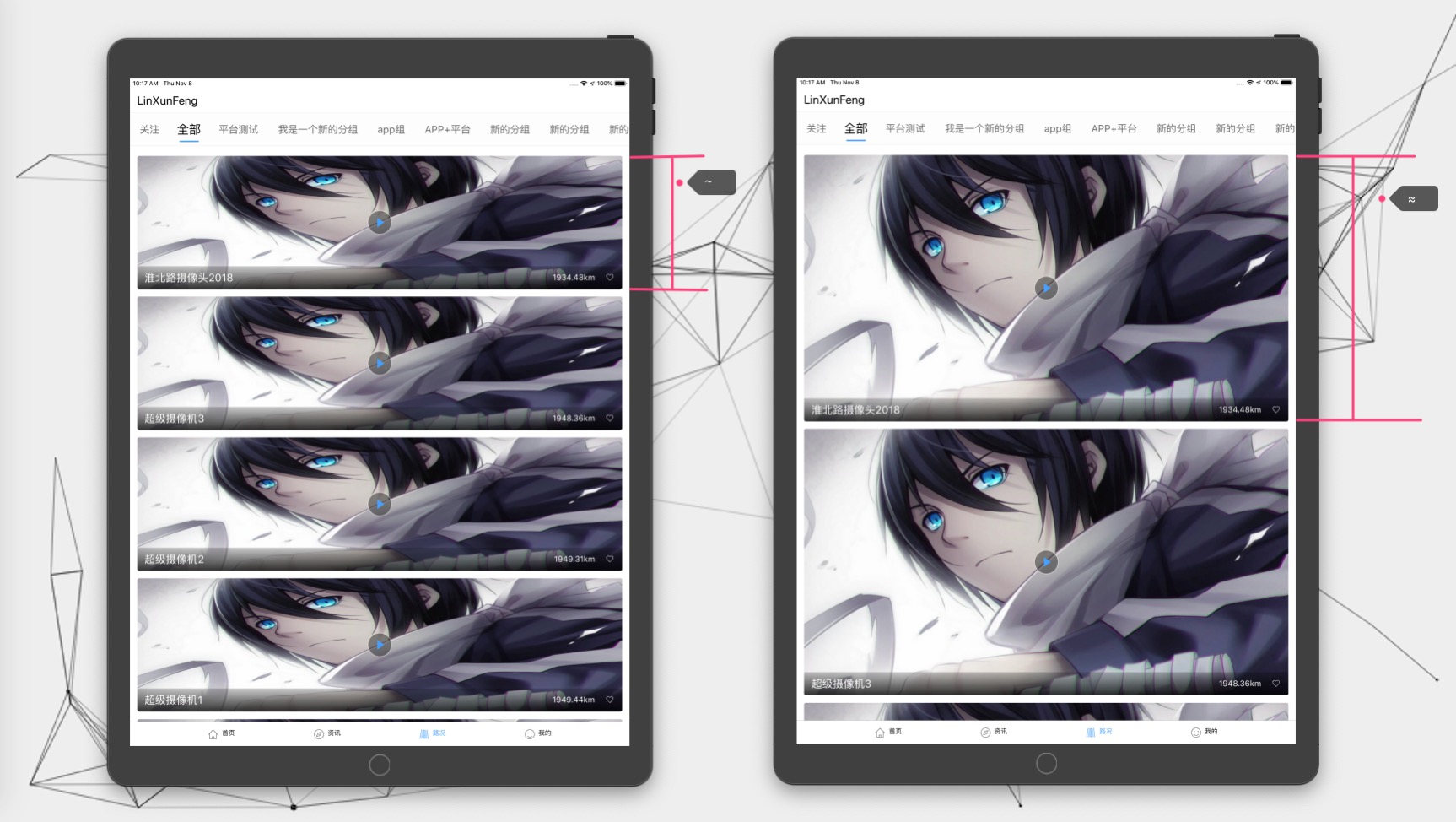

iPad About ~ and ≈ in usage

~ and ≈

3. Objective-C

Since OC does not support operator overloading, it can only be adapted with macros.
Xib and Storyboard are used the same as mentioned above.

Swift运算符correspond to OC宏

Swift operator	OC macro
`~`	`SF_xx`
`≈`	`SFZ_xx`
`∣`	`SF_FH_xx`
`∥`	`SFZ_FH_xx`
`∣=`	`SF_SCH_xx`
`∥=`	`SFZ_SCH_xx`
`∣-`	`SF_SBH_xx`
`∥-`	`SFZ_SBH_xx`

Note: xx supports the following types Font , Int , Float , Point , Size , Rect , EdgeInsets

Import

@import SwiftyFitsize;

Note: If you are using a dependency added by SPM and need to use a macro (such as: SF_Float ),
You need to import SwiftyFitsizeOCSupport , while SwiftyFitsize can not be imported.

@import SwiftyFitsizeOCSupport;

Modify参照宽度,参照高度,是否为iPhoneX系列的参照高度and iPadFitMultiple

[SwiftyFitsize referenceWithWidth: 414
                           height: 896
            isIPhoneXSeriesHeight: YES
                  iPadFitMultiple: 0.6 ];

UIFont *font = [UIFont systemFontOfSize: 14 ];

UIFont *font1 = font.sf;
UIFont *font2 = SF_Font(font);

CGFloat num = SF_Float( 14 );
CGPoint point = SF_Point(CGPointMake( 10 , 10 ));
CGSize size = SF_Size(CGSizeMake( 100 , 100 ));
CGRect rect = SF_Rect(CGRectMake( 10 , 10 , 100 , 100 ));
UIEdgeInsets edge = SF_EdgeInsets(UIEdgeInsetsMake( 0 , 0 , 100 , 100 ));

≈

UIFont *font1 = font.sfz;
UIFont *font2 = SFZ_Font(font);

CGFloat num = SFZ_Float( 14 );
CGPoint point = SFZ_Point(CGPointMake( 10 , 10 ));
CGSize size = SFZ_Size(CGSizeMake( 100 , 100 ));
CGRect rect = SFZ_Rect(CGRectMake( 10 , 10 , 100 , 100 ));
UIEdgeInsets edge = SFZ_EdgeInsets(UIEdgeInsetsMake( 0 , 0 , 100 , 100 ));

The same is true for other operators

4. Remove the specified size and adapt

Scenario: The left and right spacing of tableView is 10 when the screen size is different. After excluding the left and right spacing of 10 , Cell is adapted in an equal way.
Usage idea: minus 20 width in total, and adapt to the remaining size.

Swift

It is recommended to use the PropertyWrapper scheme for the following calling methods: one and two.

 struct Metric {
    static let tableViewLeftRightMargin : CGFloat = 10 // 定义 tableView 的左右间距
    ...
    static let tableViewHeight : CGFloat = Fit . $width ( 30 ) // 去掉左右边距后进行适配的值
    static let rowLeftViewWidth : CGFloat = Fit . $width ( 177.5 )
    static let rowCenterViewWidth : CGFloat = Fit . $width ( 100.5 )
    static let rowRightViewWidth : CGFloat = Fit . $width ( 77 )
    ...
}

struct Fit {
//    @WrappedSwiftyFitsize(fitType: .flexibleWidth, reduceValue: Metric.tableViewLeftRightMargin)
//    fitType 默认值是 .flexibleWidth，所以可以不传
    @ WrappedSwiftyFitsize ( reduceValue : Metric . tableViewLeftRightMargin * 2 )
    static var width : CGFloat = 375
}

375 is an initialization value, and it has no special meaning. It is just that the value can be obtained when calling Fit.width . If the value of Fit.width is not used, the initialization will not be performed.

Call method:

// 移除指定尺寸后的适配，调用方式：
// 以下都是以适配 tableView 为例，移除 tableView 左右两侧固定的边距，以剩余的宽度来做适配

// 方式一：先赋值再取值
// 将 20 进行适配
Fit . width = 20
print ( "适配后的值 -- ( Fit . width ) " )

// 方式二：使用 $ 将 width 当方法用，传入待适配的值
// 将 30 进行适配
let aVal = Fit . $width ( 30 )
print ( "适配后的值 aVal -- ( aVal ) " )

// 方式三：调用 SwiftyFitsize.fit 方法
let bVal = SwiftyFitsize . fit (
  size : 40 ,
  fitType : . flexibleWidth ,
  reduceValue : Metric . tableViewLeftRightMargin * 2
)
print ( "适配后的值 bVal -- ( bVal ) " )

Objective-C

Is this the case of adapting to tableView , remove the fixed margins on the left and right sides of the tableView, and adapt the remaining width to the tableView.

 CGFloat fitWidth = [SwiftyFitsize fitWithSize: 40
                                      fitType: SwiftyFitTypeFlexibleWidth
                                  reduceValue: 20 ];

It can be used as a macro for easy use

# define kFitWidth ( value )
[SwiftyFitsize fitWithSize: value fitType: SwiftyFitTypeFlexibleWidth reduceValue: 20 ]

Use macros to adapt

 CGFloat fitWidth = kFitWidth ( 40 );
NSLog ( @" fitWidth -- %f " , fitWidth);

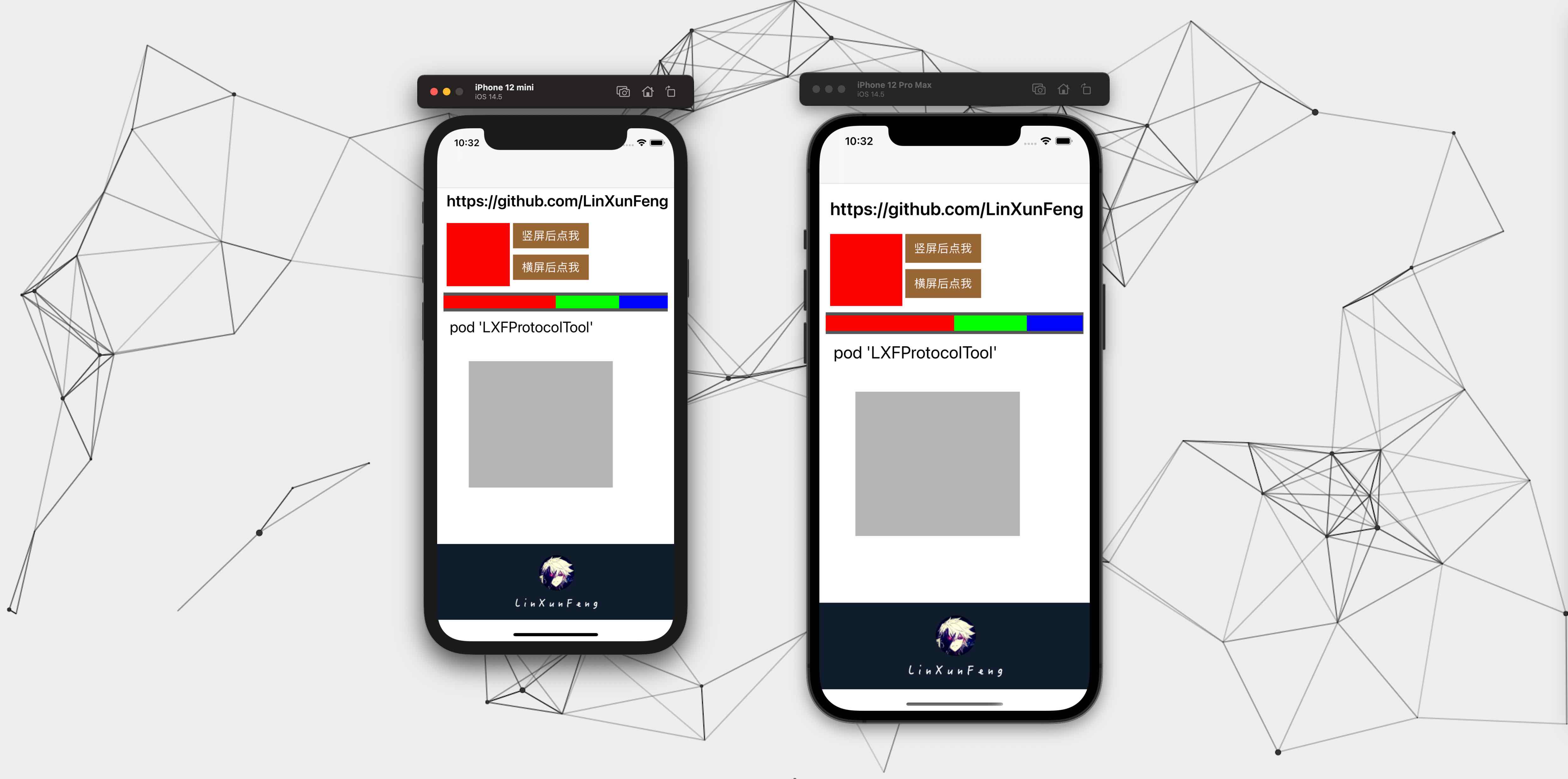

The effect is shown in the bar view containing red, green and blue:

Height fit comparison

5. Calculation result type

definition

/// 计算结果类型
@ objc public enum SwiftyFitCalcResultType : Int {
    /// 跟随全局配置
    case globalConfig
    /// 原始数据
    case raw
    /// 四舍五入
    case round
    /// 保留一位小数（根据第二位小数进行四舍五入）
    case oneDecimalPlace
}

Range of impact

.raw : The impact is ignored
.round : Influence range (-0.5, 0.5]
.oneDecimalPlace : Effect range (-0.05, 0.05]

Global configuration

If not configured, the default is .raw
.globalConfig takes the type configured here
If it is still set to .globalConfig here, it will be reset to .raw internally

 SwiftyFitsize . reference ( width : 375 , calcResultType : . oneDecimalPlace ) // 全局配置计算结果为保留一位小数

use

The following is the global configuration without specifying the calcResultType parameter.

Specify calcResultType separately

 SwiftyFitsize . fit (
    size : 35 , // 36
    fitType : . flexibleWidth ,
    reduceValue : 10 * 2 ,
    calcResultType : . raw // .round .oneDecimalPlace
)

PropertyWrapper method

// calcResultType: .raw .round .oneDecimalPlace
@ WrappedSwiftyFitsize ( reduceValue : Metric . tableViewLeftRightMargin * 2 , calcResultType : . raw )
static var width : CGFloat = 375

Sample data

The first column is the value before adaptation
The other columns are values calculated according to different SwiftyFitCalcResultType after adaptation

Original value	raw	round	oneDecimalPlace
35	36.478873239436616	36.0	36.5
36	37.52112676056338	38.0	37.5

Misc

The following lists the corresponding resolutions of some devices for easy search

equipment	Logical resolution (point)	Device resolution (pixel)
SE	320x568	640x1136
6(S)/7/8 / SE (second generation)	375x667	750x1334
6(S)+/7+/8+	414x736	1080x1920
X(S) / 11Pro	375x812	1125x2436
XR / 11	414x896	828x1792
XS Max / 11Pro Max	414x896	1242x2688
12 mini / 13 mini	360x780	1080x2340
12(Pro) / 13(Pro)	390x844	1170x2532
12 Pro Max / 13 Pro Max	428x926	1284x2778
