LoRa TTN Node

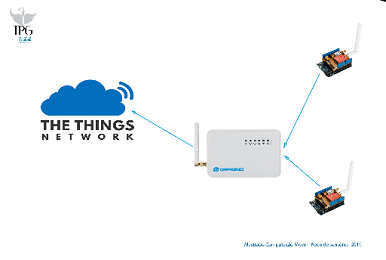

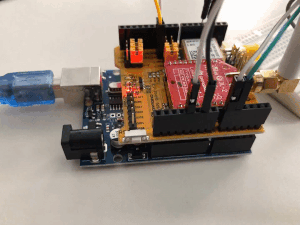

The Things Network Node Lora Arduino Uno

The data is much more beautiful when you can view it. This project makes it easy to send data from nodes lorawan sensor connected to the Things network.

In this repository you find a Step by Step to record a Node (Arduino Uno) on the TTN platform and how to send to this sensor values: GPS, humidity, temperature and brightness using Lora.

To view data on a map and in the form of a chart, you can use this repository: https://github.com/daeynastas/lora-ttn-map

Change in each node (main.cpp)

 static const PROGMEM u1_t NWKSKEY[ 16 ] = { 0x82 , 0x60 };  // COLOCAR AQUI "Network Session Key" (ver screenshot)
static const u1_t PROGMEM APPSKEY[ 16 ] = { 0x59 , 0x76 };  // COLOCAR AQUI "App Session Key"
static const u4_t DEVADDR = 0x26011874 ;                  // COLOCAR AQUI "0xDevice Address"

Change in each node (main.cpp)

implicitly indicate the freq. that configured in the dragino, in this case "868300000"

   # if defined(CFG_eu868)
   // LMIC_setupChannel(0, 868100000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_CENTI);      // g-band
   LMIC_setupChannel ( 1 , 868300000 , DR_RANGE_MAP(DR_SF12, DR_SF7B), BAND_CENTI);      // g-band
   // LMIC_setupChannel(2, 868500000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_CENTI);      // g-band
   // LMIC_setupChannel(3, 867100000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_CENTI);      // g-band
   // LMIC_setupChannel(4, 867300000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_CENTI);      // g-band
   // LMIC_setupChannel(5, 867500000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_CENTI);      // g-band
   // LMIC_setupChannel(6, 867700000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_CENTI);      // g-band
   // LMIC_setupChannel(7, 867900000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_CENTI);      // g-band
   // LMIC_setupChannel(8, 868800000, DR_RANGE_MAP(DR_FSK,  DR_FSK),  BAND_MILLI);      // g2-band

How to install

1. Cloning repository

.

 $ git clone https://github.com/daeynasvistas/LoRa-TTN-Node

Used pounds

 lib_deps =
   # Depend on specific version
   DHTlib
   [email protected]+arduino-2
   TinyGPS

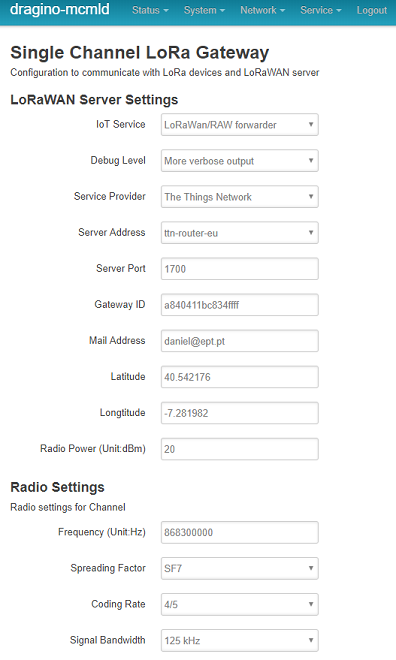

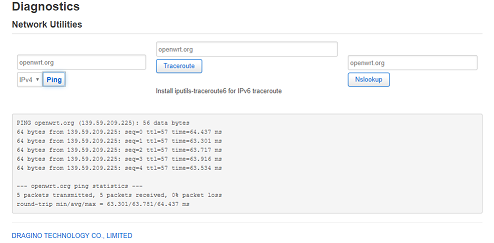

2. Configure gateway dragino:

Using Gateway Mac with ID: '' '' A840411111BC834FFF <- Add F up to 16bit '' '

3. On the TTN console

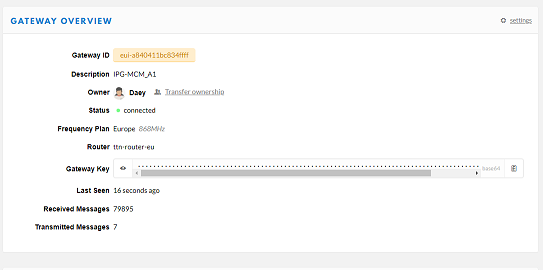

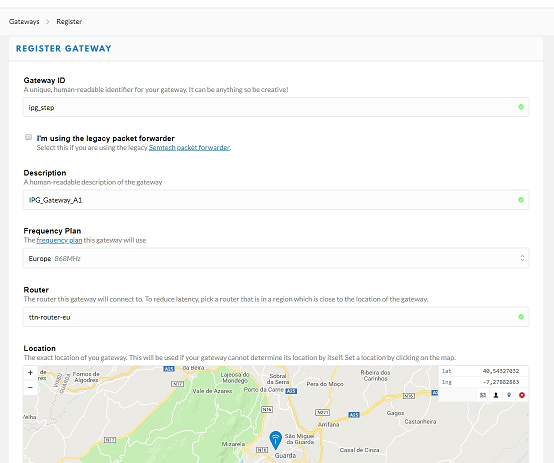

3.1 Record a new gateway

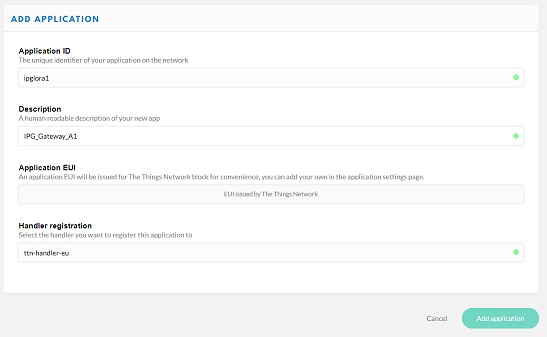

3.2 Add a new application

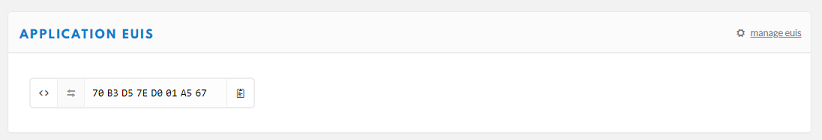

We thus get the Application Key (App ID)

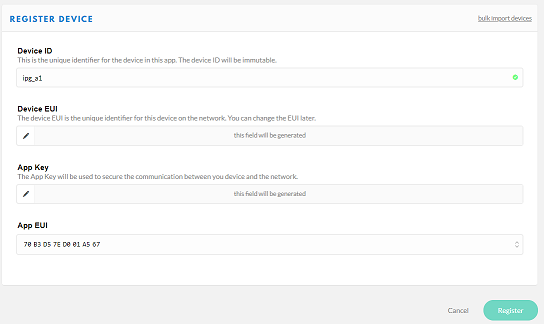

4. Record a new node (in the previously created application)

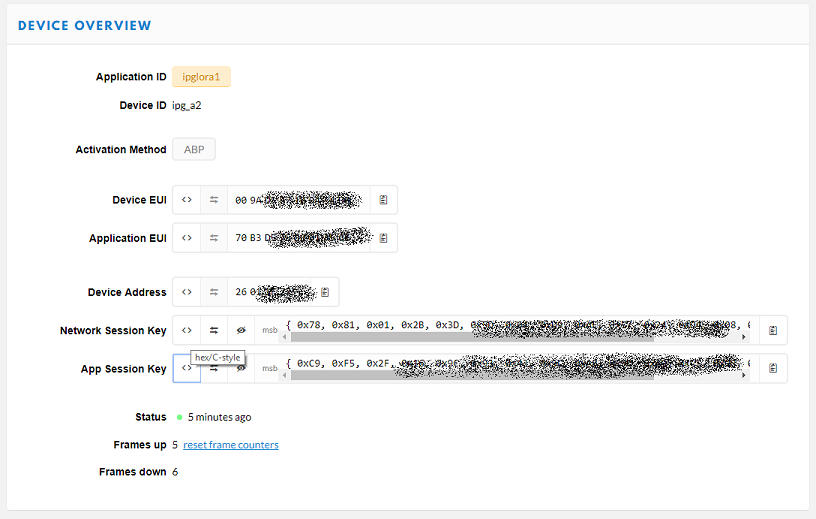

4.1 We get the necessary keys here

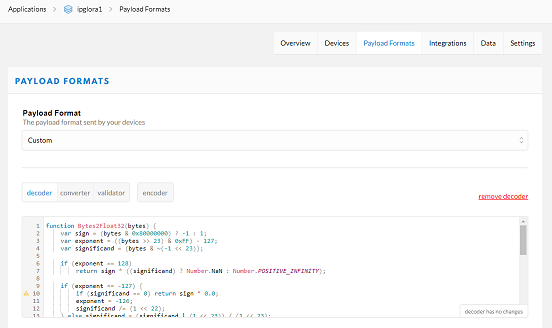

5. A Payload "Custom" was implemented

5.1 Payload Custom

 function Bytes2Float32 ( bytes ) {
  var sign = ( bytes & 0x80000000 ) ? - 1 : 1 ;
  var exponent = ( ( bytes >> 23 ) & 0xFF ) - 127 ;
  var significand = ( bytes & ~ ( - 1 << 23 ) ) ;

  if ( exponent == 128 )
      return sign * ( ( significand ) ? Number . NaN : Number . POSITIVE_INFINITY ) ;

  if ( exponent == - 127 ) {
      if ( significand == 0 ) return sign * 0.0 ;
      exponent = - 126 ;
      significand /= ( 1 << 22 ) ;
  } else significand = ( significand | ( 1 << 23 ) ) / ( 1 << 23 ) ;

  return sign * significand * Math . pow ( 2 , exponent ) ;
}

// Test using 0xFF1641 for -23.4 and 65%, or 0x00EA41 for +23.4 and 65%
function Decoder ( bytes , port ) {
  var lat = bytes [ 3 ] << 24 | bytes [ 2 ] << 16 | bytes [ 1 ] << 8 | bytes [ 0 ] ;
var lon = bytes [ 7 ] << 24 | bytes [ 6 ] << 16 | bytes [ 5 ] << 8 | bytes [ 4 ] ;

var lux =  bytes [ 8 ] << 8 | bytes [ 9 ] ;

var temp = bytes [ 10 ] << 24 >> 16 | bytes [ 11 ] ;
var hum = bytes [ 12 ] << 8 | bytes [ 13 ] ;


return {
  latitude :  Bytes2Float32 ( lat ) ,
  	longitude : Bytes2Float32 ( lon ) ,
  Temperatura : ( temp / 100 ) ,
  Humidade : ( hum / 100 ) ,
  Luminosidade : ( lux ) ,
} ;
}

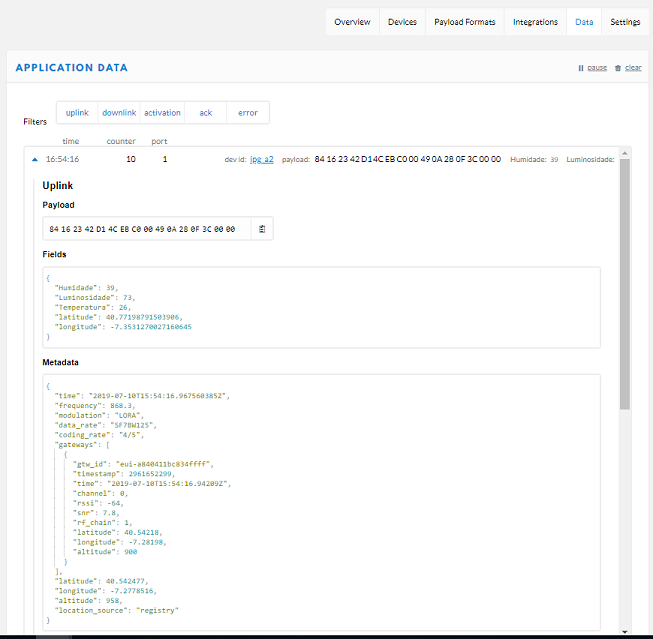

Result
