django_dramatiq_charts

django_dramatiq_charts

Draw charts by django_dramatiq task history in db.

Chart types: load and timeline.

Python version	3.6+
License	Apache-2.0
PyPI	https://pypi.python.org/pypi/django_dramatiq_charts/

Contents

• Installation
• Guide
  • Configuration
  • Load chart
  • Timeline chart
• Release notes
• Thanks

Installation

$ pip install django-dramatiq-charts

Requirements:

• Django 2.2+
• dramatiq 1.11+
• django-dramatiq 0.10.0+

Guide

Configuration

1. Add django_dramatiq_charts to installed apps after django_dramatiq app:

INSTALLED_APPS = [
    'django_dramatiq',
    'django_dramatiq_charts',
    'my_app',
    # ...
]

2. Add lib views to your urls:

from django_dramatiq_charts.views import load_chart, timeline_chart, clean_cache

urlpatterns = [
    path('django_dramatiq_charts/load_chart/', load_chart, name='ddc_load_chart'),
    path('django_dramatiq_charts/timeline_chart/', timeline_chart, name='ddc_timeline_chart'),
    path('django_dramatiq_charts/clean_cache/', clean_cache, name='ddc_clean_cache'),
    # ...
]

3. Configure lib in your project settings file:

Parameter	Description	Default
DJANGO_DRAMATIQ_CHARTS_PERM_FN	users with access to the charts	def fn(request): return request.user.is_superuser
DJANGO_DRAMATIQ_CHARTS_LOAD_QS_FILTER	Additional queryset filter for load chart	None
DJANGO_DRAMATIQ_CHARTS_TIMELINE_QS_FILTER	Additional queryset filter for timeline chart	None
DJANGO_DRAMATIQ_CHARTS_CACHE_FORM_DATA_SEC	Minutes to cache choices of queue and actor form fields (False-like to disable)	4 hours

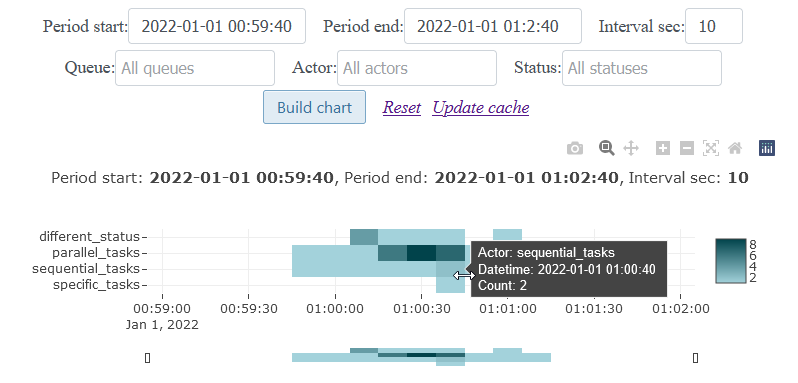

Load chart

Shows the number of simultaneously executed actors in each time interval on timeline

Tasks running more than one day are not counted (assumed to be an error).

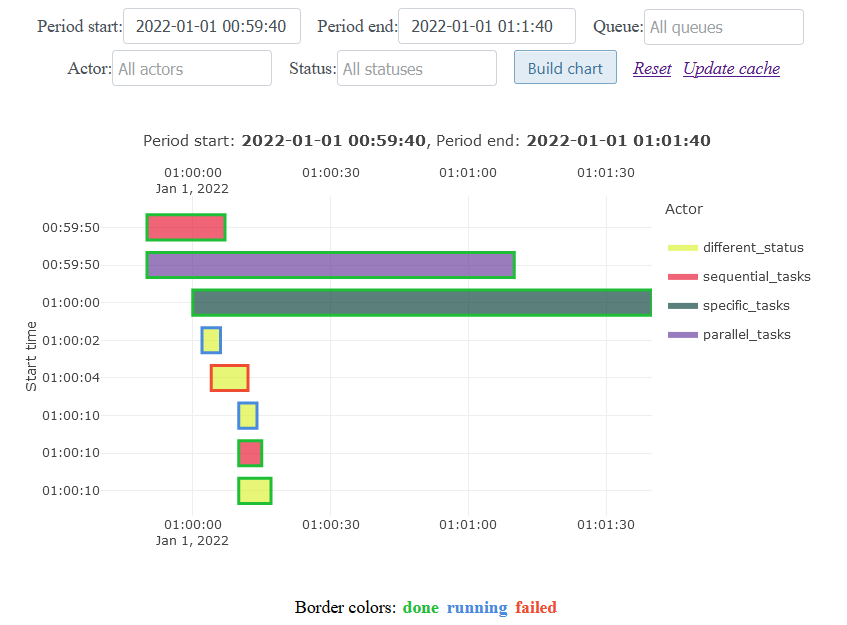

Timeline chart

Shows actors on timeline

If the task duration is less than a second, this task is displayed on the chart with a duration of 1 second.

Release notes

History of important changes: release_notes.rst

Thanks

Thanks to all who helped develop this library:

MilkyCake, lexa2907, python, django, plotly, jquery, select2, flaticon.com
