现在，此Wiki在https://github.com/nowsecure/r2frida/wiki上维护

R2frida Wiki

在阅读本教程之前，强烈建议您首先查看R2FRIDA的官方网站以安装工具以及了解该工具的功能。

Android＆iOS连接

使用frida-ls-devices和使用frida-ps的应用程序来检索设备ID。如果显示名称包含空格，则包装名称可能是可取的。

附

使用显示名称附加到运行的应用程序。

r2 frida://device-id/Snapchat

附着在Frida小工具上：

r2 frida://attach/usb//Gadget

产卵

使用两个//和软件包名称产生应用程序。

r2 frida://device-id//com.snapchat.android

或明确使用spawn一词：

r2 frida://spawn/usb/device-id/com.android.app

或不输入device-id ：

r2 frida://spawn/usb//com.android.app

命令（ ? ）

为了获取命令列表，您可能要键入： ? 。请记住，所有R2FRIDA命令都必须以 or =! 。

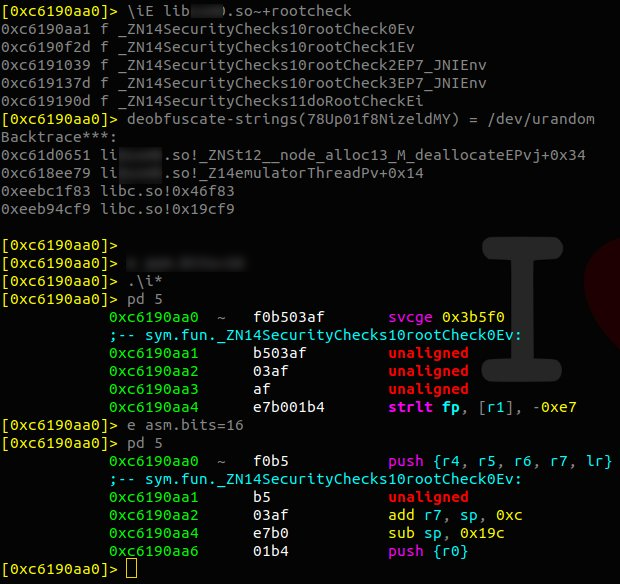

imaing

版本命令

  • ?V ：显示目标弗里达版本

显示R2版本：

[ 0x00000000 ]> ? V
3.6 .0 - git aka 3.5 .0 - 27 - g2bba203eb commit 21781

显示Frida版本：

[ 0x00000000 ]> ? V
{ "version" : "12.5.3" }
[ 0x00000000 ]> =!? V
{ "version" : "12.5.3" }

信息丰富的命令（ i ）

[ 0x00000000 ]> ?~^ i
i                          Show target information
ii [*]                      List imports
il                         List libraries
is [*] < lib >                List symbols of lib ( local and global ones )
iE [*] < lib >                Same as is , but only for the export global ones
iEa [*] (< lib >) < sym >       Show address of export symbol
isa [*] (< lib >) < sym >       Show address of symbol
ic < class >                 List Objective - C classes or methods of < class >
ip < protocol >              List Objective - C protocols or methods of < protocol >
  • i ：显示目标信息
[ 0x00000000 ]>  i
arch  arm
bits  64
os  linux
pid  14473
uid  10127
objc  false
java  true
cylang  false
  • i* ：以r2形式显示目标信息
[ 0x00000000 ]>  i *
e asm . arch = arm
e asm . bits = 64
e asm . os = linux

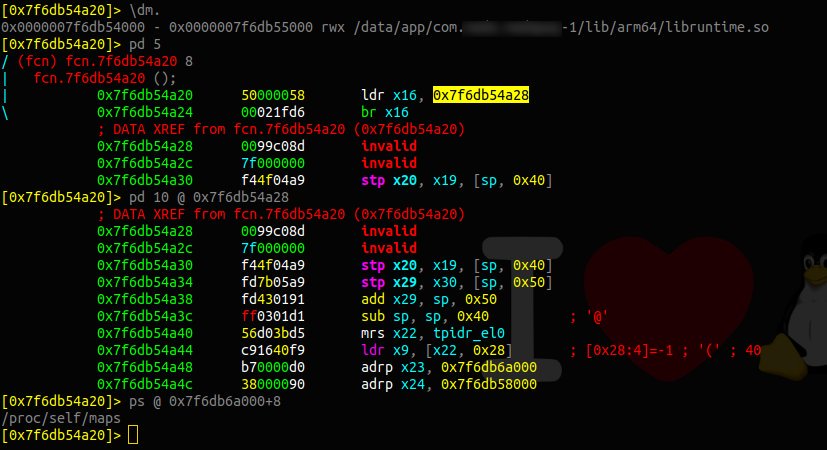

  • .i* ：Radare2从Frida导入所有动态二进制数据。例如：哪些体系结构，末端性，指针尺寸等...imaing

  • .iE* export

  • .iE* <lib> ：Radare2仅为一个特定库导入Frida的所有动态export数据。

  • .ii* ：Radare2从Frida导入所有动态import数据。

  • ii <lib> ：列表导入。通常与符号~一起使用，即r2的内部GREP。

[ 0x00000000 ]>  ii libssl . so ~+ aes
0x7f9419f510 f EVP_aes_128_cbc / system / lib64 / libcrypto . so
0x7f941a2740 f EVP_aead_aes_128_cbc_sha1_ssl3 / system / lib64 / libcrypto . so
0x7f941a3314 f EVP_aead_aes_128_cbc_sha1_tls / system / lib64 / libcrypto . so
0x7f941a3320 f EVP_aead_aes_128_cbc_sha1_tls_implicit_iv / system / lib64 / libcrypto . so
0x7f941a332c f EVP_aead_aes_128_cbc_sha256_tls / system / lib64 / libcrypto . so
0x7f9419f5b8 f EVP_aead_aes_128_gcm / system / lib64 / libcrypto . so
0x7f941a274c f EVP_aead_aes_256_cbc_sha1_ssl3 / system / lib64 / libcrypto . so
0x7f941a3338 f EVP_aead_aes_256_cbc_sha1_tls / system / lib64 / libcrypto . so
0x7f941a3344 f EVP_aead_aes_256_cbc_sha1_tls_implicit_iv / system / lib64 / libcrypto . so
0x7f941a3350 f EVP_aead_aes_256_cbc_sha256_tls / system / lib64 / libcrypto . so
0x7f941a335c f EVP_aead_aes_256_cbc_sha384_tls / system / lib64 / libcrypto . so
0x7f9419f5c4 f EVP_aead_aes_256_gcm / system / lib64 / libcrypto . so
0x7f9419f600 f EVP_has_aes_hardware / system / lib64 / libcrypto . so
  • ii* <lib> ：列出r2表单中的导入。
[ 0x00000000 ]>  ii * libssl . so ~+ aes
f sym . imp . EVP_aes_128_cbc = 0x7f9419f510
f sym . imp . EVP_aead_aes_128_cbc_sha1_ssl3 = 0x7f941a2740
f sym . imp . EVP_aead_aes_128_cbc_sha1_tls = 0x7f941a3314
f sym . imp . EVP_aead_aes_128_cbc_sha1_tls_implicit_iv = 0x7f941a3320
f sym . imp . EVP_aead_aes_128_cbc_sha256_tls = 0x7f941a332c
f sym . imp . EVP_aead_aes_128_gcm = 0x7f9419f5b8
f sym . imp . EVP_aead_aes_256_cbc_sha1_ssl3 = 0x7f941a274c
f sym . imp . EVP_aead_aes_256_cbc_sha1_tls = 0x7f941a3338
f sym . imp . EVP_aead_aes_256_cbc_sha1_tls_implicit_iv = 0x7f941a3344
f sym . imp . EVP_aead_aes_256_cbc_sha256_tls = 0x7f941a3350
f sym . imp . EVP_aead_aes_256_cbc_sha384_tls = 0x7f941a335c
f sym . imp . EVP_aead_aes_256_gcm = 0x7f9419f5c4
f sym . imp . EVP_has_aes_hardware = 0x7f9419f600
  • il ：列表库。通常与符号~一起使用，即r2的内部GREP。
[ 0x00000000 ]>  il ~+ keystore , ssl , crypto
0x0000007f94133000 libcrypto . so
0x0000007f93059000 libssl . so
0x0000007f879d8000 libjavacrypto . so
0x0000007f879d3000 libkeystore - engine . so
0x0000007f87985000 libkeystore_binder . so
0x0000007f5c491000 libvisacrypto . so
  • iE <lib> ：列表库的出口（IES）
[ 0x00000000 ]>  iE
Do you want to print 111759 lines ? ( y / N ) n

通过库名称过滤：

[ 0x00000000 ]>  iE libssl . so ~ AES
0x7f9307afb4 f SSL_CIPHER_is_AES256CBC
0x7f9307af64 f SSL_CIPHER_is_AES
0x7f9307af8c f SSL_CIPHER_is_AESGCM
0x7f9307af9c f SSL_CIPHER_is_AES128GCM
0x7f9307afa8 f SSL_CIPHER_is_AES128CBC

用r2表格进行过滤：（注意* ）

[ 0x00000000 ]>  iE * libssl . so ~ AES
f sym . fun . SSL_CIPHER_is_AES256CBC = 0x7f9307afb4
f sym . fun . SSL_CIPHER_is_AES = 0x7f9307af64
f sym . fun . SSL_CIPHER_is_AESGCM = 0x7f9307af8c
f sym . fun . SSL_CIPHER_is_AES128GCM = 0x7f9307af9c
f sym . fun . SSL_CIPHER_is_AES128CBC = 0x7f9307afa8
  • iEa (<lib>) <sym> ：显示导出符号的地址
[ 0x00000000 ]>  iEa libDexHelper . so JNI_OnLoad
0xd1c2b859
  • iEa* (<lib>) <sym> ：以r2格式显示导出符号的地址
[ 0x00000000 ]>  iEa * libDexHelper . so JNI_OnLoad
f sym . JNI_OnLoad = 0xd1c2b859
  • isa[*] (<lib>) <sym> ：显示符号的地址
[ 0xd5d26859 ]>  is libc . so ~ sprintf
0x0 f bionic / libc / upstream - openbsd / lib / libc / stdio / asprintf . c
0x0 f bionic / libc / upstream - openbsd / lib / libc / stdio / vasprintf . c
0x0 f bionic / libc / upstream - openbsd / lib / libc / stdio / vsprintf . c
0x0 f bionic / libc / bionic / __vsprintf_chk . cpp
0x0 f bionic / libc / stdio / sprintf . c
0xf5140be5 f asprintf
0xf5142dbd f vasprintf
0xf5148da9 f vsprintf
0xf5153c01 f __vsprintf_chk
0xf5153c29 f __sprintf_chk
0xf5155885 f sprintf

[ 0xd5d26859 ]>  isa sprintf
0xf5155885
  • ic ：列表类
[ 0x00000000 ]>  ic
Do you want to print 5769 lines ? ( y / N ) n

通过关键字过滤（例如软件包名称）：

[ 0x00000000 ]>  ic ~+ security
android . security . net . config . TrustAnchor
android . security . net . config . UserCertificateSource
android . security . net . config . CertificatesEntryRef
android . security . net . config . DirectoryCertificateSource$CertSelector
android . security . net . config . RootTrustManager
android . security . net . config . PinSet
android . security . net . config . CertificateSource
android . security . keystore . AndroidKeyStoreProvider
android . security . net . config . NetworkSecurityConfig$Builder
android . security . net . config . ApplicationConfig
android . security . NetworkSecurityPolicy

搜索命令（ / ）

[ 0x00000000 ]> ?~^/
/[ x ][ j ] < string | hexpairs >  Search hex / string pattern in memory ranges ( see search . in =?)
/ w [ j ] string               Search wide string
/ v [ 1248 ][ j ] value          Search for a value honoring ` e cfg . bigendian ` of given width
  • / keyword ：存储器范围中的搜索十六进制/字符串模式（请参阅search.in =？）
[ 0x00000000 ]> / rooted
...
Searching 6 bytes in [ 0x0000007f95e1a000 - 0x0000007f95ebb000 ]
...
Searching 6 bytes in [ 0x0000007fc74a5000 - 0x0000007fc7ca4000 ]
hits : 9
0x7f595ec8e7 hit1_0 rootediso8601DateFormatissuerAccessCodeissuerActionCod
0x7f5e8aceb5 hit1_1 rooted devices for data security reasons .: Operation excepti
0x7f69566fa9 hit1_2 rooted ? EECan not capture your card details , NFC feature is
0x7f6956f976 hit1_3 rooted or jailbroken . This is an added security measure to p
0x7f695763ac hit1_4 rooted to keep your details safe AndroidPay utilizes the m
0x7f69583dca hit1_5 rooted ). T
0x7f6958dc30 hit1_6 rooted or jailbroken . Z
0x7f6958e011 hit1_7 rooted ).
0x7f6991d8e7 hit1_8 rootediso8601DateFormatissuerAccessCodeissuerActionCod

搜索字符串keyword和JSON格式输出：

[ 0x00000000 ]> / j rooted
Searching 6 bytes in [ 0x0000007f95ebe000 - 0x0000007f95ebf000 ]
...
Searching 6 bytes in [ 0x0000007fc74a5000 - 0x0000007fc7ca4000 ]
hits : 9
[{ "address" : "0x7f595ec8e7" , "size" : 6 , "flag" : "hit2_0" , "content" : "rootediso8601DateFormatissuerAccessCodeissuerActionCod" },{ "address" : "0x7f5e8aceb5" , "size" : 6 , "flag" : "hit2_1" , "content" : "rooted devices for data security reasons.:Operation excepti" },{ "address" : "0x7f69566fa9" , "size" : 6 , "flag" : "hit2_2" , "content" : "rooted?EECan not capture your card details, NFC feature is " },{ "address" : "0x7f6956f976" , "size" : 6 , "flag" : "hit2_3" , "content" : "rooted or jailbroken. This is an added security measure to p" },{ "address" : "0x7f695763ac" , "size" : 6 , "flag" : "hit2_4" , "content" : "rooted to keep your details safe AndroidPay utilizes the m" },{ "address" : "0x7f69583dca" , "size" : 6 , "flag" : "hit2_5" , "content" : "rooted).T      " },{ "address" : "0x7f6958dc30" , "size" : 6 , "flag" : "hit2_6" , "content" : "rooted or jailbroken.Z    " },{ "address" : "0x7f6958e011" , "size" : 6 , "flag" : "hit2_7" , "content" : "rooted).      " },{ "address" : "0x7f6991d8e7" , "size" : 6 , "flag" : "hit2_8" , "content" : "rootediso8601DateFormatissuerAccessCodeissuerActionCod" }]

另一个示例搜索潜在的WhiteBox密码学实现：

[ 0x00000000 ]> / whitebox
Searching 8 bytes in [ 0x0000007fa558c000 - 0x0000007fa558f000 ]
Searching 8 bytes in [ 0x0000007feee1a000 - 0x0000007fef619000 ]
hits : 7
0x7f6cf4481d hit1_0 whitebox_damagePKhPhi_Z15whitebox_repairPhS_i_Z16CryptoPP_
0x7f6cf44837 hit1_1 whitebox_repairPhS_i_Z16CryptoPP_GenKeysSs_Z16gen_random_b
0x7f6f27c81d hit1_2 whitebox_damagePKhPhi_Z15whitebox_repairPhS_i_Z16CryptoPP_
0x7f6f27c837 hit1_3 whitebox_repairPhS_i_Z16CryptoPP_GenKeysSs_Z16gen_random_b
0x7f6f8fd4f9 hit1_4 whiteboxed_key_gen . cG [ fzM ~=) j -# wTOL$C9
0x7f6fa185f0 hit1_5 whiteboxed_key_gen . c = j ; h58Z ^ X ). ln |
0x7f7dcb7552 hit1_6 whitebox

搜索十六进制字符串：

[ 0x00000000 ]> / x c0ffee
Searching 3 bytes in [ 0x0000007f95ebf000 - 0x0000007f95ec2000 ]
...
Searching 3 bytes in [ 0x0000007fc74a5000 - 0x0000007fc7ca4000 ]
hits : 7
0x71100090 hit3_0 c0ffee
0x719a104c hit3_1 c0ffee
0x7f59df54ec hit3_2 c0ffee
0x7f5bfaf4ec hit3_3 c0ffee
0x7f6141bb52 hit3_4 c0ffee
0x7f61e7de68 hit3_5 c0ffee
0x7f87c07623 hit3_6 c0ffee

搜索十六进制字符串和JSON格式输出：

[ 0x00000000 ]> / xj c0ffee
Searching 3 bytes in [ 0x0000007f95ebe000 - 0x0000007f95ebf000 ]
...
Searching 3 bytes in [ 0x0000007fc74a5000 - 0x0000007fc7ca4000 ]
hits : 7
[{ "address" : "0x71100090" , "size" : 3 , "flag" : "hit4_0" , "content" : "c0ffee" },{ "address" : "0x719a104c" , "size" : 3 , "flag" : "hit4_1" , "content" : "c0ffee" },{ "address" : "0x7f59df54ec" , "size" : 3 , "flag" : "hit4_2" , "content" : "c0ffee" },{ "address" : "0x7f5bfaf4ec" , "size" : 3 , "flag" : "hit4_3" , "content" : "c0ffee" },{ "address" : "0x7f6141bb52" , "size" : 3 , "flag" : "hit4_4" , "content" : "c0ffee" },{ "address" : "0x7f61e7de68" , "size" : 3 , "flag" : "hit4_5" , "content" : "c0ffee" },{ "address" : "0x7f87c07623" , "size" : 3 , "flag" : "hit4_6" , "content" : "c0ffee" }]

搜索值v从给定宽度的字节中的给定宽度[1248] ：

[ 0x00000000 ]> ? 1234
hex     0x4d2
string  " xd2 x04 "
[ 0x00000000 ]> / v4 1234
Searching 3 bytes in [ 0x0000007f95ebe000 - 0x0000007f95ebf000 ]
...
Searching 3 bytes in [ 0x0000007fc74a5000 - 0x0000007fc7ca4000 ]
hits : 1076
0x7f95acfb23 hit2_1071 d2040000
0x7f95ad01d3 hit2_1072 d2040000
0x7f95e96a2b hit2_1073 d2040000
0x7f95e96b17 hit2_1074 d2040000
0x7f95e96f1f hit2_1075 d2040000
0x7f95e96fb3 hit2_1076 d2040000

动态/调试命令（ d ）

[ 0x00000000 ]> ?~^ d
db (< addr >|< sym >)          List or place breakpoint
db - (< addr >|< sym >)|*       Remove breakpoint ( s )
dc                         Continue breakpoints or resume a spawned process
dd [-][ fd ] ([ newfd ])        List , dup2 or close filedescriptors
dm [.| j |*]                  Show memory regions
dma < size >                 Allocate < size > bytes on the heap , address is returned
dmas < string >              Allocate a string inited with < string > on the heap
dmad < addr > < size >         Allocate < size > bytes on the heap , copy contents from < addr >
dmal                       List live heap allocations created with dma [ s ]
dma - (< addr >...)           Kill the allocations at < addr > ( or all of them without param )
dmp < addr > < size > < perms >  Change page at < address > with < size >, protection < perms > ( rwx )
dmm                        List all named squashed maps
dmh                        List all heap allocated chunks
dmhj                       List all heap allocated chunks in JSON
dmh *                       Export heap chunks and regions as r2 flags
dmhm                       Show which maps are used to allocate heap chunks
dp                         Show current pid
dpt                        Show threads
dr                         Show thread registers ( see dpt )
dl libname                 Dlopen a library
dl2 libname [ main ]         Inject library using Frida 's >= 8.2 new API
dt (< addr >|< sym >) ...      Trace list of addresses or symbols
dth (< addr >|< sym >) ( x y ..) Define function header ( z = str , i =int, v = hex barray , s = barray )
dt -                        Clear all tracing
dtr < addr > (< regs >...)     Trace register values
dtf < addr > [ fmt ]           Trace address with format (^ ixzO ) ( see dtf ?)
dtSf [* j ] [ sym | addr ]        Trace address or symbol using the stalker ( Frida >= 10.3 .13 )
dtS [* j ] seconds            Trace all threads for given seconds using the stalker
di [ 0 , 1 ,- 1 ] [ addr ]          Intercept and replace return value of address
dx [ hexpairs ]              Inject code and execute it ( TODO )
dxc [ sym | addr ] [ args ..]    Call the target symbol with given args
  • db (<addr>|<sym>) ：列表或放置断点

设置动态断点：（注意"stopped":false ）

[ 0x00000000 ]>  db `i i libtarget . so ~ dlsym [ 0 ]`
{
  "0x7f95e19548" : {
    "name" : "0x7f95e19548" ,
    "stopped" : false ,
    "address" : "0x7f95e19548" ,
    "continue" : false ,
    "handler" : {}
  }
}

一旦打断点击中，我们就可以随意篡改内存（请注意"stopped":true ）

[ 0x00000000 ]>  db
{
  "0x7f95e19548" : {
    "name" : "0x7f95e19548" ,
    "stopped" : true ,
    "address" : "0x7f95e19548" ,
    "continue" : false ,
    "handler" : {}
  }
}

列出所有断点：

[ 0x00000000 ]>  db
{
  "0x7f95e19548" : {
    "name" : "0x7f95e19548" ,
    "stopped" : true ,
    "address" : "0x7f95e19548" ,
    "continue" : false ,
    "handler" : {}
  },
  "0x7f942bf1e8" : {
    "name" : "0x7f942bf1e8" ,
    "stopped" : false ,
    "address" : "0x7f942bf1e8" ,
    "continue" : false ,
    "handler" : {}
  }
}

检查内存后，我们继续执行：

[ 0x00000000 ]>  dc
Continue 1 thread ( s ).

当不再需要断点时，可以删除它们：

[ 0x00000000 ]>  db - *
All breakpoints removed
[ 0x00000000 ]>  db
{}
  • dm ：显示内存区域（相当于cat /proc/$PID/maps ）

内存区域列表（第二个命令中的JSON输出）

[ 0x7f93059000 ]>  dm
Do you want to print 1708 lines ? ( y / N ) n
[ 0x7f93059000 ]>  dmj
Do you want to print 1 lines ? ( y / N ) n

通过库名称过滤：

[ 0x00000000 ]>  dm ~ ssl
0x0000007f618ee000 - 0x0000007f61929000 r -- / system / lib64 / libssl . so
0x0000007f93059000 - 0x0000007f93091000 r - x / system / lib64 / libssl . so
0x0000007f93092000 - 0x0000007f93094000 r -- / system / lib64 / libssl . so
0x0000007f93094000 - 0x0000007f93095000 rw - / system / lib64 / libssl . so

按照库名称过滤，使输出以r2格式为：

[ 0x7f93059000 ]>  dm *~ ssl
f map .0 x0000007f618ee000 = 0x7f618ee000 # r -- / system / lib64 / libssl . so
f map .0 x0000007f93059000 = 0x7f93059000 # r - x / system / lib64 / libssl . so
f map .0 x0000007f93092000 = 0x7f93092000 # r -- / system / lib64 / libssl . so
f map .0 x0000007f93094000 = 0x7f93094000 # rw - / system / lib64 / libssl . so

找出当前偏移的内存区域：

[ 0x00000000 ]> s 0x0000007f93059000
[ 0x7f93059000 ]>  dm .
0x0000007f93059000 - 0x0000007f93091000 r - x / system / lib64 / libssl . so

不寻求偏移：

[ 0x00000000 ]>  dm . @ 0x7f6f8fd4f9
0x0000007f6f8fd000 - 0x0000007f6fa56000 rw - / data / app / com . target . pay - 1 / lib / arm64 / libvisacrypto . so
  • dma <size> ：分配堆上的字节，返回地址
[ 0x00000000 ]>  dma 512
0xcb1777f0
[ 0x00000000 ]> x 512 @ 0xcb1777f0
- offset -   0 1  2 3  4 5  6 7  8 9  A B  C D  E F  01234567 89 ABCDEF
0xcb1777f0  0000 0000 0000 0000 0000 0000 0000 0000  ................
0xcb177800  0000 0000 0000 0000 0000 0000 0000 0000  ................
  • dmas <string> ：分配一个在堆上包含的字符串
 0x00000000 ]>  dmas r2fridaiscool
0xf3d7ee10
[ 0x00000000 ]> ps @ 0xf3d7ee10
r2fridaiscool
[ 0x00000000 ]> x @ 0xf3d7ee10
- offset -   0 1  2 3  4 5  6 7  8 9  A B  C D  E F  01234567 89 ABCDEF
0xf3d7ee10  7232 6672 6964 6169 7363 6f 6f 6 c00 f2ff  r2fridaiscool ...
0xf3d7ee20  1800 0000 1300 0000 01 a3 57d e 0000 0000  .......... W .....
0xf3d7ee30  0000 0000 2300 0000 7265 2e66 7269 6461  ....#... re . frida
0xf3d7ee40  2e41 6765 6e74 436f 6e74 726f 6 c6c 6572  . AgentController
0xf3d7ee50  3132 0000 1 b00 0000 c050 d7f3 0300 0000  12. ...... P ......
  • dmal ：列表用DMA创建的现场堆分配
[ 0x00000000 ]>  dmal
0xf3d7ee10	"r2fridaiscoolW#re.frida.AgentContro"
  • dt (<addr>|<sym>) ... ：地址或符号的跟踪列表。类似于frida-trace

动态跟踪（ dt ） fopen ：

[ 0x00000000 ]>  dt fopen ;  dth fopen z ;  dc
[ TRACE ] 0x7f942bf1e8 ( fopen ) [ "/proc/self/maps" ]
 - 0x7f5bf72d98 libtarget . so ! scan_executable + 0xf0
 - 0x7f5bf72d94 libtarget . so ! scan_executable + 0xec
 - 0x7f5bf721b4 libtarget . so ! secchecks + 0x90
 - 0x7f5bf6cdb8 libtarget . so ! Java_com_super_secure_App + 0x1710
 - 0x7f69e6a7e0 base . odex ! oatexec + 0x4e7e0

动态跟踪（ dt ） strcmp ：

 -- Insert coin to continue ...
[ 0x00000000 ]>  dt strcmp ;  dth strcmp z z ; . agent . js ;d c
undefined
[ TRACE ] 0x7f94267adc ( strcmp ) [ "Landroid/app/ActivityThread;" , "Landroid/app/ActivityThread;" ]
 - 0x7f91abdeac libart . so ! 0x11ceac
 - 0x7f91abdea8 libart . so ! 0x11cea8
 - 0x7f91ace8b0 libart . so ! _ZN3art10ClassTable6LookupEPKcm + 0x100
 - 0x7f91aa0b9c libart . so ! _ZN3art11ClassLinker11LookupClassEPNS_6ThreadEPKcmPNS_6mirror11ClassLoaderE + 0xc4
 - 0x7f91aa0de8 libart . so ! _ZN3art11ClassLinker26FindClassInPathClassLoaderERNS_33ScopedObjectAccessAlreadyRunnableEPNS_6ThreadEPKcmNS_6HandleINS_6mirror11ClassLoaderEEEPPNS8_5ClassE + 0xfc
 - 0x7f91aa0e7c libart . so ! _ZN3art11ClassLinker26FindClassInPathClassLoaderERNS_33ScopedObjectAccessAlreadyRunnableEPNS_6ThreadEPKcmNS_6HandleINS_6mirror11ClassLoaderEEEPPNS8_5ClassE + 0x190
 - 0x7f91aa2234 libart . so ! _ZN3art11ClassLinker9FindClassEPNS_6ThreadEPKcNS_6HandleINS_6mirror11ClassLoaderEEE + 0x3b0
 - 0x7f91ca1e24 libart . so ! 0x300e24
 - 0x7f7b356884 frida - agent - 64. so ! 0x177884
[ TRACE ] 0x7f94267adc ( strcmp ) [ "Landroid/hardware/radio/RadioManager$ModuleProperties;" , "Landroid/hardware/radio/RadioManager$ModuleProperties;" ]
 - 0x7f91abdeac libart . so ! 0x11ceac
 - 0x7f91abdea8 libart . so ! 0x11cea8
 - 0x7f91ace8b0 libart . so ! _ZN3art10ClassTable6LookupEPKcm + 0x100
 - 0x7f91aa0b9c libart . so ! _ZN3art11ClassLinker11LookupClassEPNS_6ThreadEPKcmPNS_6mirror11ClassLoaderE + 0xc4
 - 0x7f91aa0de8 libart . so ! _ZN3art11ClassLinker26FindClassInPathClassLoaderERNS_33ScopedObjectAccessAlreadyRunnableEPNS_6ThreadEPKcmNS_6HandleINS_6mirror11ClassLoaderEEEPPNS8_5ClassE + 0xfc
 - 0x7f91aa0e7c libart . so ! _ZN3art11ClassLinker26FindClassInPathClassLoaderERNS_33ScopedObjectAccessAlreadyRunnableEPNS_6ThreadEPKcmNS_6HandleINS_6mirror11ClassLoaderEEEPPNS8_5ClassE + 0x190
 - 0x7f91aa2234 libart . so ! _ZN3art11ClassLinker9FindClassEPNS_6ThreadEPKcNS_6HandleINS_6mirror11ClassLoaderEEE + 0x3b0
 - 0x7f91ca1e24 libart . so ! 0x300e24
 - 0x7f7b356884 frida - agent - 64. so ! 0x177884

动态跟踪（ dt ） unlink ：

[ 0x00000000 ]>  dt unlink ;  dth unlink z ; . agent . js ;d c
[ TRACE ] 0x7f94274fe0 ( unlink ) [ "/data/data/com.target.app/.   ​" ]
 - 0x7f942a5824 libc . so ! remove + 0x58
 - 0x7f942a5820 libc . so ! remove + 0x54
 - 0x7f8c39f724 libopenjdk . so ! Java_java_io_UnixFileSystem_delete0 + 0x5c
 - 0x720157dc boot . oat ! oatexec + 0x647dc
[ TRACE ] 0x7f94274fe0 ( unlink ) [ "/data/data/com.target.app/.   " ]
 - 0x7f942a5824 libc . so ! remove + 0x58
 - 0x7f942a5820 libc . so ! remove + 0x54
 - 0x7f8c39f724 libopenjdk . so ! Java_java_io_UnixFileSystem_delete0 + 0x5c
 - 0x720157dc boot . oat ! oatexec + 0x647dc
  • dtf <addr> [fmt] ：格式（^ixzo）的跟踪地址（请参阅DTF？）

额外帮助：

[ 0x00000000 ]>  dtf ?
Usage : dtf [ format ] || dtf [ addr ] [ fmt ]
  ^  = trace onEnter instead of onExit
  +  = show backtrace on trace
 p / x = show pointer in hexadecimal
  c  = show value as a string ( char )
  i  = show decimal argument
  z  = show pointer to string
  s  = show string in place
  O  = show pointer to ObjC object
Undocumented : Z , S
 dtf	trace format

以格式（ z =指针指向字符串）跟踪本机包装器并添加回溯（ ^ ）：

[ 0x00000000 ]>  dtf fopen z ^;  dtf dlopen z ^;
[ 0x00000000 ]>  dc
resumed spawned process .
[ TRACE ] dtf	dlopen	( 0 : "libc.so" )	0x7f908b4668	libshella - 2.9 . 0.5 . so	0xfffffffff9d91668
	0x7f908b4664	libshella - 2.9 . 0.5 . so	0xfffffffff9d91664
	0x7f908b4b1c	libshella - 2.9 . 0.5 . so	JNI_OnLoad + 0x124
	0x7f96b24bac	libshella - 2.9 . 0.5 . so	0x1bac
	0x7f97ecf650	libart . so	_ZN3art9JavaVMExt17LoadNativeLibrary < REDACTED >... 9 _ + 0x858
[ TRACE ] dtf     fopen   ( 0 : "/proc/self/stat" )  0x7f99409550    libc . so pthread_getattr_np + 0xc4
	0x7f9940954c	libc . so	pthread_getattr_np + 0xc0
	0x7f9744aedc	libBugly . so	javaStaticCall_Thread_CurrentThread + 0x80
	0x7f9744b40c	libBugly . so	javaTheadDump + 0x44
	0x7f9744be40	libBugly . so	getBuglyClassPathPrefix + 0x48
	0x7f9744fd3c	libBugly . so	JNI_OnLoad + 0x90
	0x7f97ecf650	libart . so	_ZN3art9JavaVMExt17LoadNativeLibrary < REDACTED >... 9 _ + 0x858
	0x7f9bdcb27c	libopenjdkjvm . so	JVM_NativeLoad + 0x118
	0x7204cdd0	boot . oat	oatexec + 0x9bdd0
  • dkr ：打印崩溃报告（如果应用程序崩溃）
 error : Script is destroyed
error : Script is destroyed
[ 0xc3374000 ]>  dkr
*** *** *** *** *** *** *** *** *** *** *** *** *** *** *** ***
Build fingerprint : 'OnePlus/OnePlus5/OnePlus5:7.0/NRD90M/0131337:user/release-keys'
Revision : '0'
ABI : 'arm'
pid : 9207 , tid : 9229 , name : gum - js - loop  >>> com . target . application <<<
signal 6 ( SIGABRT ), code - 6 ( SI_TKILL ), fault addr --------
Abort message : '../../../glib/glib/gmem.c:106: failed to allocate 1037852 bytes'
    r0 00000000  r1 0000240 d  r2 00000006  r3 0000000 8
    r4 ce47f978  r5 00000006  r6 ce47f920  r7 0000010 c
    r8 00000000  r9 00000007  sl 0000 e98d  fp 0000 e98c
    ip 0000000 c  sp ce47f268  lr e8d944b7  pc e8d96d38  cpsr 200f 0010

backtrace :
    # 00 pc 00000 d38  / system / lib / libc . so ( offset 0x49000 )
    # 01 pc 000264 b3  / system / lib / libc . so ( offset 0x21000 )
  • dxc [sym|addr] [args..] ：用给定的args调用目标符号

查找要呼叫的函数：（例如，我们在小工具中搜索导入）

[ 0x00000000 ]>  ii frida - gadget . so ~ gettimeofday
0xf40d8590 f gettimeofday / system / lib / libc . so

正如我们要调用函数int gettimeofday(struct timeval *tv, struct timezone *tz);我们需要两个新结构。为此，我们可以在过程的堆中分配一些内存，并获得两个指针。

[ 0x00000000 ]>  dma 16
0xebaf6f18
[ 0x00000000 ]>  dma 16
0xebaf70d8

最后，我们可以使用上述指针调用该功能。 dxc命令返回调用函数的返回值。

[ 0x00000000 ]>  dxc 0xf40d8590 0xebaf6f18 0xebaf70d8
"0x0"

在此特定示例中，我们可以使用R2命令pt （打印时间戳）来验证指针是否确实被时间戳填充了。因此，我们在该过程中任意执行代码。

[ 0x00000000 ]> x 16 @ 0xebaf6f18
- offset -   0 1  2 3  4 5  6 7  8 9  A B  C D  E F  01234567 89 ABCDEF
0xebaf6f18  301 e ae5c 0 b6c 0200 0000 0000 0000 0000  0. .. l ..........
[ 0x00000000 ]> pt 4 @ 0xebaf6f18
Wed Apr 10 17 : 47 : 44 2019

可评估变量（ e ）

  • e[?] [a[=b]] ：list/get/set config可评估vars
[ 0x00000000 ]>  e
e patch . code = true
e search . in = perm : r --
e search . quiet = false
e stalker . event = compile
e stalker . timeout = 300
e stalker . in = raw

环境变量（ env ）

  • env ：获取/设置环境变量

设置Env变量：

[ 0x00000000 ]>  env LD_PRELOAD =/ data / local / tmp / libhook . so
LD_PRELOAD =/ data / local / tmp / libhook . so

获取ENV变量：

[ 0x00000000 ]>  env LD_PRELOAD
LD_PRELOAD =/ data / local / tmp / libhook . so

列出所有变量：

[ 0x00000000 ]>  env
PATH =/ su / bin :/ sbin :/ vendor / bin :/ system / sbin :/ system / bin :/ su / xbin :/ system / xbin
ANDROID_BOOTLOGO = 1
ANDROID_ROOT =/ system
ANDROID_ASSETS =/ system / app
ANDROID_DATA =/ data
ANDROID_STORAGE =/ storage
EXTERNAL_STORAGE =/ sdcard
ASEC_MOUNTPOINT =/ mnt / asec
ANDROID_SOCKET_zygote = 9
ANDROID_LOG_TAGS =*: s

frida脚本（ . script.js ）

可以在目标中运行的JS代码可以加载. script.js 。一个常见的做法始终是称呼此脚本agent.js记住这是要在目标内运行的代码。

[ 0x00000000 ]> . agent . js
[ 0x00000000 ]>  dc
resumed spawned process .

ios

  • ic ：列表类

（这将有很大的输出。）

[ 0x00000000 ]>  ic
OS_dispatch_queue_attr
OS_dispatch_group
OS_dispatch_semaphore
OS_dispatch_mach
OS_dispatch_source
OS_dispatch_queue
OS_dispatch_queue_mgr
OS_dispatch_queue_network_event
OS_dispatch_queue_root
OS_dispatch_queue_main
OS_dispatch_queue_concurrent
OS_dispatch_queue_serial
OS_dispatch_queue_runloop
[ 0x00000000 ]>

列出具有过滤器或关键字的类：

[ 0x00000000 ]>  ic ~ UITouch
_UITouchObservation
_UITouchForceMessage
_UITouchForceObservationMessageReader
_DUITouchRoutingPolicy
UITouch
_UITouchForwardingRecipient
_UITouchPredictionManager
UITouchData
_UITouchForceInteractionProgress
_UITouchForceObservable
UITouchForceGestureRecognizer
_UITouchesObservingGestureRecognizer
UITouchesEvent
[ 0x00000000 ]>

一个类中的列表字段：

[ 0x00000000 ]>  ic UITouch
0x000000018df1bf38 + _createTouchesWithGSEvent : phase : view :
0x0000000197826758 - pu_locationInPresentationLayerOfView :
0x000000019b18ab74 - locationInNode :
0x000000019b18acd0 - previousLocationInNode :
0x000000018db33858 - window
0x000000018db34794 - locationInView :
0x000000018db339f0 - phase
0x000000018db41d0c - . cxx_destruct
0x000000018db41cb8 - dealloc
0x000000018df1c170 - description
0x000000018db33ee0 - view
0x000000018db34da0 - timestamp
0x000000018db32924 - setWindow :
0x000000018dd230f4 - _setEaten :
0x000000018db33540 - _isEaten
[ 0x00000000 ]>
  • ip <protocol> ：列表协议

（这将有很大的输出。）

[ 0x00000000 ]>  ip
GVRenderer
CADSyncInterface
VKMapModelDelegate
SCNPhysicsBehaviorJSExport
GEOMapServiceProblemReportTicket
PXWidgetUnlockDelegate
ICMusicSubscriptionLeaseSessionDelegate
IKJSDOMCharacterData
ACDAccountAuthenticationPlugin
TUIDSLookup
FCOrderedCollectionAdditions
MSSubscribeStreamsProtocolDelegate
_DKEventStatsCounterInternalProperty
FBInterstitialAdNativeViewDelegate
[ 0x00000000 ]>

列出带有过滤器或关键字的协议：

[ 0x00000000 ]>  ip ~ Touch
GADNTouchHandling
UIScrollViewDelayedTouchesBeganGestureRecognizerClient
_UITouchPhaseChangeDelegate
_UIKBRTTouchDriftingDelegate
UIDebuggingInformationTouchObserver
WBSTouchIconObserver
BKSTouchDeliveryPolicyServerInterface
_UITouchForceObservationMessageReading
_UITouchable
_UIFocusEnginePanGestureTouchObserver
UIWebTouchEventsGestureRecognizerDelegate
_MKUserInteractionGestureRecognizerTouchObserver
FBAdTouchGestureRecognizerDelegate
_UIPreviewInteractionTouchForceProviding
[ 0x00000000 ]>

列表一个协议的方法：

[ 0x00000000 ]>  ip GADNTouchHandling
- handleUserTouchMovedByVector :
[ 0x00000000 ]>
  • dpt ：列表线程
[ 0x00000000 ]>  dpt
1027
18947
26375
39687
37895
37635
36875
36359
34843
29187
33543
43527
86531
77827
63499
67347
68651
62491
  • dr ：列表线程寄存器（请参阅dpt ）
[ 0x00000000 ]>  dr
tid 1027 waiting
 fp : 0x000000016eb66bb0	 lr : 0x0000000180c873e0	 pc : 0x0000000180c87568
 sp : 0x000000016eb66b60	 x0 : 0x000000016eb66cb8	 x1 : 0x0000000007000806
 x2 : 0x0000000000000000	 x3 : 0x0000000000000c00	 x4 : 0x0000000000004c03
 x5 : 0x00000000ffffffff	 x6 : 0x0000000000000000	 x7 : 0x00000000000003d0
 x8 : 0x00000000fffffbbf	 x9 : 0x0000000007000000	x10 : 0x0000000007000100
x11 : 0x0000000000000040	x12 : 0xffffffffffffffff	x13 : 0x0000000000000001
x14 : 0x0071180000711800	x15 : 0x0000000000000000	x16 : 0xffffffffffffffe1
x17 : 0x00000000ffffffff	x18 : 0xfffffff00fe9925c	x19 : 0x0000000000000000
x20 : 0x00000000ffffffff	x21 : 0x0000000000004c03	x22 : 0x0000000000000c00
x23 : 0x000000016eb66cb8	x24 : 0x0000000007000806	x25 : 0x0000000000000000
x26 : 0x0000000007000806	x27 : 0x0000000000000c00	x28 : 0x0000000000000001

tid 18947 waiting
 fp : 0x000000016f165d80	 lr : 0x0000000180c873e0	 pc : 0x0000000180c87568
 sp : 0x000000016f165d30	 x0 : 0x000000016f165e88	 x1 : 0x0000000007000806
 x2 : 0x0000000000000000	 x3 : 0x0000000000000c00	 x4 : 0x0000000000003203
 x5 : 0x00000000ffffffff	 x6 : 0x0000000000000000	 x7 : 0x0000000000000000
 x8 : 0x00000000fffffbbf	 x9 : 0x0000000007000000	x10 : 0x0000000007000100
x11 : 0x0000000000000040	x12 : 0xffffffffffffffff	x13 : 0x0000000000000001
x14 : 0x00019e0000019e00	x15 : 0x0000000000000000	x16 : 0xffffffffffffffe1
x17 : 0x00000000ffffffff	x18 : 0xfffffff00fe9925c	x19 : 0x0000000000000000
x20 : 0x00000000ffffffff	x21 : 0x0000000000003203	x22 : 0x0000000000000c00
x23 : 0x000000016f165e88	x24 : 0x0000000007000806	x25 : 0x0000000000000000
x26 : 0x0000000007000806	x27 : 0x0000000000000c00	x28 : 0x0000000000000001

...< REDACTED >...

tid 62499 waiting
 fp : 0x000000017199aaf0	 lr : 0x0000000180dbaeec	 pc : 0x0000000180ca8d80
 sp : 0x000000017199aa60	 x0 : 0x0000000000000040	 x1 : 0x000000017199ab80
 x2 : 0x0000000000000001	 x3 : 0x0000000000000000	 x4 : 0x000000000000001e
 x5 : 0x0000000000000020	 x6 : 0x0000000000000001	 x7 : 0x0000043fa8245c34
 x8 : 0x0000000000000001	 x9 : 0x0000000000000000	x10 : 0xffbffe0000000000
x11 : 0x0000001000000000	x12 : 0x0000000000000000	x13 : 0x00000000af75b1b0
x14 : 0x0000000000000000	x15 : 0x0000000000000000	x16 : 0x0000000000000170
x17 : 0x00000000ffffffe2	x18 : 0xfffffff00fe9925c	x19 : 0x000000017199b000
x20 : 0x00000000003c0021	x21 : 0x0000000000000021	x22 : 0x0000000000000001
x23 : 0x00000001b238e000	x24 : 0x0000000000002000	x25 : 0x0000000000080000
x26 : 0x0000000000000007	x27 : 0x00000001b238e000	x28 : 0x0000000000000000
  • dtr <addr> (<regs>...) ：跟踪寄存器值

跟踪寄存器（ x1 ）在地址0x102d2e3f4

[ 0x00000000 ]>  dtr 0x102d2e3f4 x1

命中地址后，显示寄存器值：

 Trace probe hit at 0x102d2e3f4  (0x102d2e3f4) 0x19fd3e4
	x1 = 0x111243c80 ( user=eduardo;passwd=novella )
展开
附加信息
相关应用
为您推荐
相关资讯 全部
