M<>M Relay

(Meshtastic <=> Matrix Relay)

A powerful and easy-to-use relay between Meshtastic devices and Matrix chat rooms, allowing seamless communication across platforms. This opens the door for bridging Meshtastic devices to many other platforms.

Features

• Bidirectional message relay between Meshtastic devices and Matrix chat rooms, capable of supporting multiple meshnets
• Supports serial, network, and BLE (now too!) connections for Meshtastic devices
• Custom keys are embedded in Matrix messages which are used when relaying messages between two or more meshnets.
• Truncates long messages to fit within Meshtastic's payload size
• SQLite database to store node information for improved functionality
• Customizable logging level for easy debugging
• Configurable through a simple YAML file
• Supports mapping multiple rooms and channels 1:1
• Relays messages to/from an MQTT broker, if configured in the Meshtastic firmware
• ️ Cross-platform reactions support ️ NEW!!

We would love to support Matrix E2EE rooms, but this is currently not implemented.

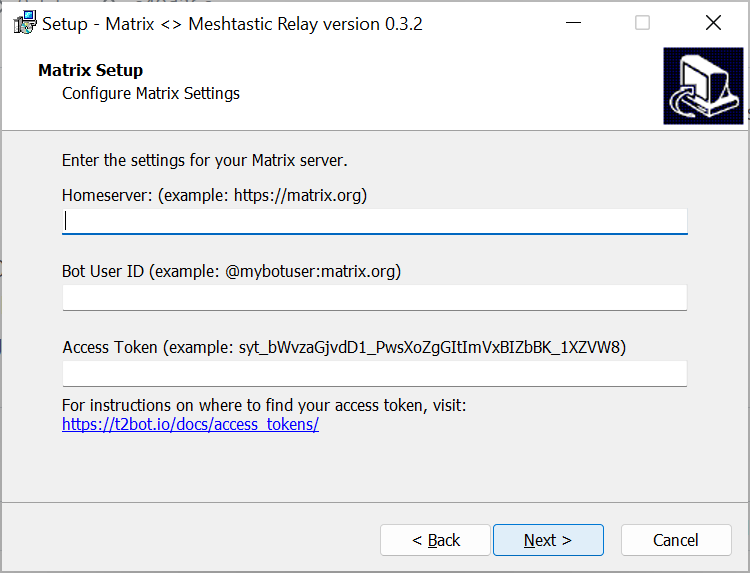

Windows Installer

The latest installer is available here

Plugins

M<>M Relay supports plugins for extending its functionality, enabling customization and enhancement of the relay to suit specific needs.

Core Plugins

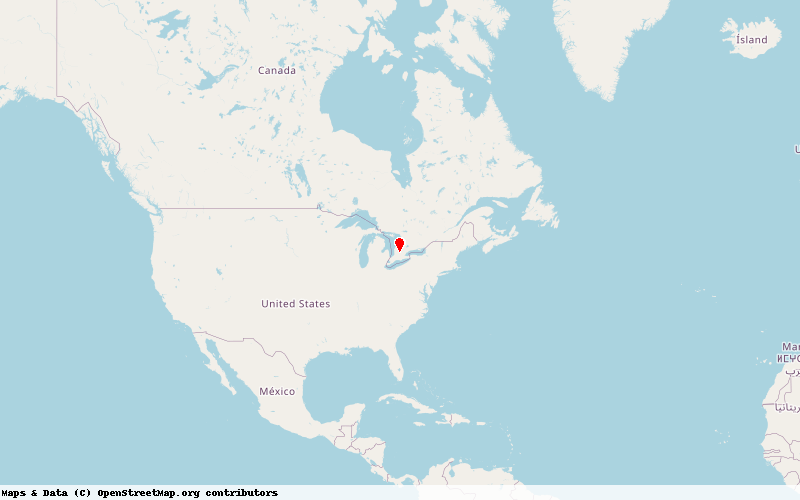

Generate a map of your nodes: (The map plugin is currently broken, see #117 for more information.)

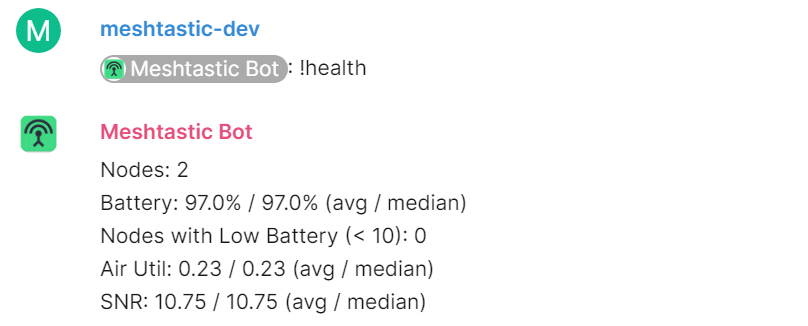

Produce high-level details about your mesh:

Community & custom plugins

It is possible to create custom plugins and to also easily share them with the community. Check example_plugins/README.md and also the Community Plugins Development Guide.

️ Visit our recently added Community Plugins List!

Install a community plugin

Add the repository under the community-plugins section in config.yaml:

community-plugins:
  example-plugin:
    active: true
    repository: https://github.com/jeremiah-k/mmr-plugin-template.git
    tag: main

Getting Started with Matrix

See our Wiki page Getting Started With Matrix & MM Relay.

Already on Matrix?

Join us!

• Our project's room: #mmrelay:meshnet.club
• Part of the Meshtastic Community Matrix space: #meshtastic-community:meshnet.club

Supported Platforms

The relay is compatible with the following operating systems:

• Linux
• MacOS
• Windows

Refer to the development instructions for details about running the relay on MacOS and Linux.
