ATSAMR34_LORAWAN_ASFv3
1.0.0
"Wireless Made Easy!" - Microchip LoRaWAN Stack Opened for SAM R34 IC and WLR089U0 Module running on Microchip Studio IDE
Devices: | ATSAMR34 | WLR089U0
THE SOFTWARE ARE PROVIDED "AS IS" AND GIVE A PATH FOR SELF-SUPPORT AND SELF-MAINTENANCE.
This repository contains unsupported example code intended to help accelerate client product development. It is not validated for production nor audited for security best-practices.
Note that while this repository is unsupported, Microchip welcome community contributions, and all pull-requests will be considered for inclusion into the repository.
Interact with peers in the community at LoRa Forum.
Clone/Download the current repo to get the package.
The Microchip LoRaWAN™ Stack (MLS) provides a solution for the LoRaWAN end-device that is used for Internet of Things (IoT) applications.
LoRa® is a wireless modulation technique designed to allow low-power end-devices to communicate over long range and at low data rates.
LoRaWAN is a wireless networking protocol which operates over LoRa communication layer and acts as Medium Access Control (MAC) layer.
LoRaWAN specification and its development is overseen by LoRa Alliance™. The specification is meant for secure communication of end-devices and ensures inter-operability within the LoRa network.
Microchip LoRaWAN Stack is Opened for SAM R34 IC and WLR089U0 Module where MAC and Radio layers are both provided as source code for self-support and self-maintenance.
MLS v1_0_P_6 release is pre-tested against LoRaWAN 1.0.4 Class A using official LoRa Alliance Test Tool (LCTT).
Purchase a LoRa Gateway
If using a Join Server with security solution for LoRaWAN, a pre-provisioned ATECC608 secure element is required. Purchase the Trust&GO secure element ATECC608B-TNGLORA for TTI Join Server or the ATECC608B-TNGACT for Actility Join Server and the CryptoAuthentication Socket Kit
Note: The following Atmel Studio tools needs to be uninstalled before installation of Microchip Studio 7.0.2542 version. Otherwise, you may face error while loading the projects.
- Atmel Driver Files
- Atmel LibUSB0 Driver(x64)
- Atmel Segger USB Drivers(501e)
- Atmel WinUSB
The LoRa Alliance® has developed a LoRaWAN® Certification Test Tool (LCTT) for all LoRa Alliance® device manufacturers to pre-test their devices before sending them to the Authorised Test Houses (ATHs) for formal LoRaWAN® Certification testing.
The LoRaWAN® certification tests for end node functionality, in other words it tests that node’s LoRaWAN protocol stack and application are compliant with the LoRaWAN specification.
Checkout the LoRa Alliance for more details.
The present software has been PRE-TESTED against the LoRaWAN® L2 Specification 1.0.4 (Class A only) for the following regions:
For reference, checkout the folder
MLS_SDK_1_0_P_6_Release/LCTT_TestReportsand get access to the test reports.
The Microchip LoRaWAN Stack contains:
The package also contains the Migration Guide which provide all the information requested to migrate the MLS LoRaWAN applications implemented on MLS_SDK_1_0_P_5 available in SAM platforms (SAMR34, WLR) to MLS_SDK_1_0_P_6. The improvements and bugfixes are listed as well as the MLS API changes.
MLS provides APIs for following software modules:
The APIs and the stack attributes are described in the SAM R34-R35 Microchip LoRaWAN Stack Software API Reference Manual.
The following table provides the directory structure of the LoRaWAN stack code base (src/ASF/thirdparty/wireless/lorawan).
| Directory | Description |
|---|---|
/hal |
Contains the implementation for the radio hardware interface, timers, etc |
/mac |
Contains the headers and sources of the LoRaWAN MAC layer specification independent of regional parameters |
/pmm |
Contains the Power Management Module (PMM) |
/regparams |
Contains the implementation of the MAC layer functionality specific to the regional bands |
/sal |
Contains the Security Abstraction Layer (SAL) |
/services |
Contains modules scuh as software timer, PDS and AES |
/sys |
Contains system modules such as task manager, power management and initialization |
/tal |
Contains transceiver related headers and sources, drivers for supported transceivers |
| Application | Target | Location |
|---|---|---|

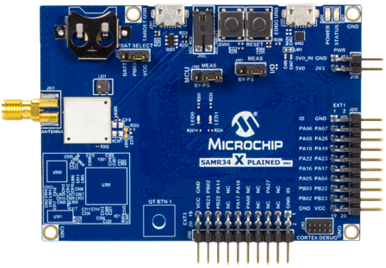

| EndDevice_Demo | SAMR34 Xplained Pro | MLS_SDK_1_0_P_6_Release/Enddevice_Demo/enddevice_demo_src_multiband_samr34_xpro |

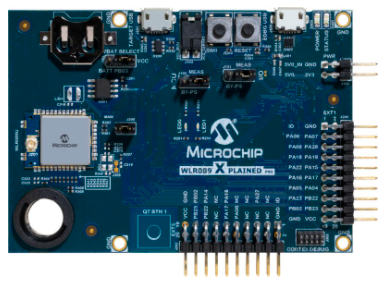

| EndDevice_Demo | WLR089U0 Xplained Pro | MLS_SDK_1_0_P_6_Release/Enddevice_Demo/enddevice_demo_src_multiband_wlr089_xpro |
The EndDevice_Demo application provides configuration for the application in src/config/conf_app.h where it is possible to configure the following parameters:
Note #1: In SAM R34 project, the macro
EDBG_EUI_READ=1is set by default in the symbols definition. This configuration can be use with SAM R34 Xplained Pro evaluation kit in order to use the EDBG EUI as DEVEUI key for Over-The-Air Join process. With a custom board which embed the SAM R34 IC, disable the macroEDBG_EUI_READ=0and fill your own DEVEUI key in the definition ofDEMO_DEVICE_EUIlocated in the filesrc/config/conf_app.h.
Note #2: In WLR089U0 project, the macro
MODULE_EUI_READ=1is set by default in the symbols definition. This configuration can be use either with WLR089U0 Xplained Pro evaluation kit or with custom board.
Checkout the SAM R34 MLS Getting Started Guide to get details on the application configuration and how to flash and run the project.
| Application | Target | Location |
|---|---|---|
| EndDevice_Demo_ecc608 | SAMR34 Xplained Pro | MLS_SDK_1_0_P_6_Release/Enddevice_Demo/enddevice_demo_src_multiband_ecc608_samr34_xpro |
| EndDevice_Demo_ecc608 | WLR089U0 Xplained Pro | MLS_SDK_1_0_P_6_Release/Enddevice_Demo/enddevice_demo_src_multiband_ecc608_wlr089_xpro |
Use the present software and refer to the following resources to get more details :
| Application | Target | Location |
|---|---|---|
| Parser | SAMR34 Xplained Pro | RN Command Parser |
| Parser | WLR089U0 Xplained Pro | RN Command Parser |
Checkout the instructions and get the latest software from the RN Command Parser repository.
| Application | Target | Location |
|---|---|---|
| Parser_ECC608 | SAMR34 Xplained Pro | RN Command Parser + ATECC608B_TNG |
| Parser_ECC608 | WLR089U0 Xplained Pro | RN Command Parser + ATECC608B_TNG |
Checkout the instructions and get the latest software from the RN Command Parser repository.
