ESP32 LoRa APRS Modem

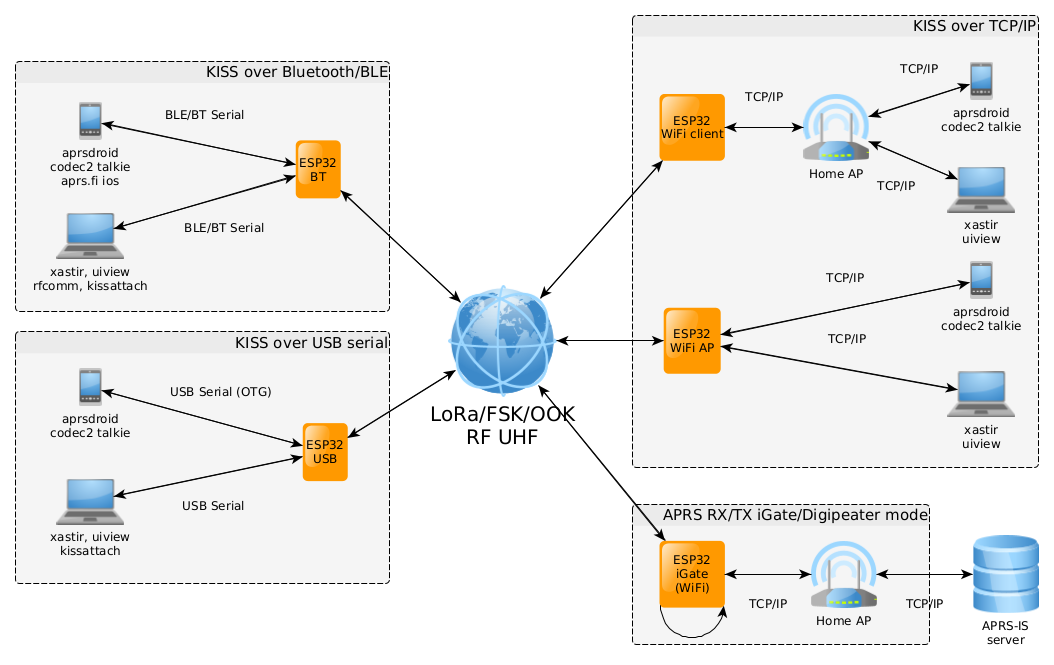

This project is amateur radio ESP32 based LoRa/FSK KISS Bluetooth/BLE/USB/TCPIP modem + LoRa APRS-IS RX/TX iGate server over WiFI + LoRa/FSK APRS digipeater + Codec2 DV modem (with Codec2 Talkie Android application).

To configure sketch modify default parameters in config.h file.

• For project description, detailed setup and more information, please, visit our Wiki at https://github.com/sh123/esp32_loraprs/wiki
• For discussions, visit https://github.com/sh123/esp32_loraprs/discussions

Project also supports APRSDroid TNC2 text APRS packet mode (configurable), which makes it interoperable with other LoRa APRS trackers without AX25 support.

Supported module types: SX126X, SX127X and other modules supported by RadioLib.

Modules, which are used by users and known to work

• SX126X (suggested, 1W modules will provide decent coverage for APRS, stable frequency suitable for < 125 kHz BW at 433 MHz, 5V from USB power bank is enough to power it, has additional LNA)
  • ? E22-400M30S (SX1268)
  • E220-400M30S (LLCC68) BW125 SF from 7 to 9 (chip limitations)
  • These modules are 30dbm modules, but maximum power should be set to no more than 20-22dbm, see https://github.com/jgromes/RadioLib/wiki/High-power-Radio-Modules-Guide
• SX127X (low power, 50-100mW, temperature frequency drift, problematic for narrow band)
  • RA-01 (SX1278)
  • RA-02 (SX1276)
  • TTGO T-Beam (SX1276)

Building

• Update include/config.h with your radio settings
  • If you are using lora-aprs iGate (non AX.25) then set CFG_TEXT_PACKETS and CFG_TEXT_PACKETS_3 config parameters to true and use APRSDroid TNC2 connection protocol
• To build for client/tracker mode use pio run -e esp32dev
• To build for iGate mode use pio run -e esp32dev_igate

Development board

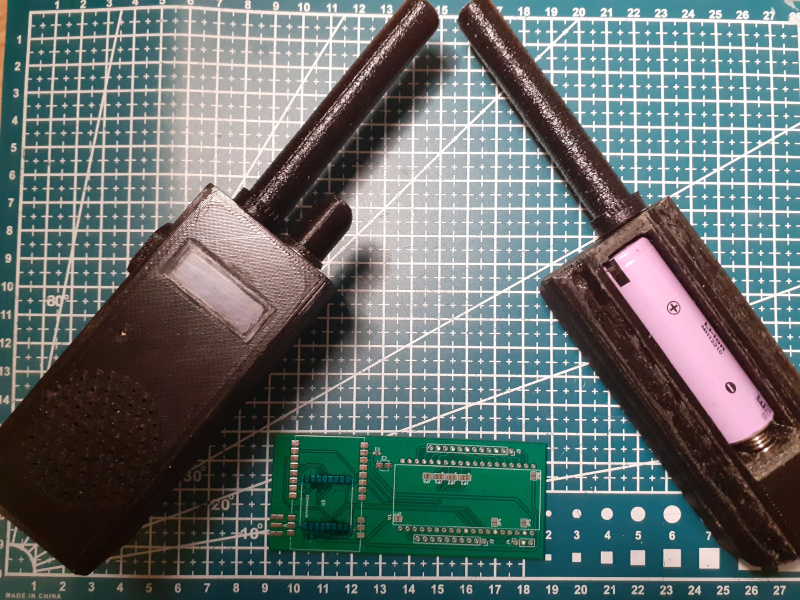

Development board schematics, case and antenna models are available under extras/cad and extras/schematics.

Supported ESP32 boards are with 36 and 38 pinouts (configured with solder pads).

There are ESP32 boards with different socket widths: 22mm and 25mm, board files for 25mm have _wide suffix in file names.
