CodeMirror Indentation Markers

A CodeMirror extension that renders indentation markers using a heuristic similar to what other popular editors, like Ace and Monaco, use.

Usage

import { basicSetup } from 'codemirror';
import { EditorState } from '@codemirror/state';
import { EditorView } from '@codemirror/view';
import { indentationMarkers } from '@replit/codemirror-indentation-markers';

const doc = `
def max(a, b):
  if a > b:
    return a
  else:
    return b
`

new EditorView({
  state: EditorState.create({
    doc,
    extensions: [basicSetup, indentationMarkers()],
  }),
  parent: document.querySelector('#editor'),
});

Options

You can provide an options object to indentationMarkers() with the following optional properties:

• highlightActiveBlock

  Boolean that determines whether the active block marker is styled differently. Setting this to false provides a significant performance enhancement because it means that markers do not need to be regenerated when the selection changes. Defaults to true.

• hideFirstIndent

  Boolean that determines whether markers in the first column are omitted. Defaults to false.

• markerType

  String that determines how far the indentation markers extend. "fullScope" indicates that the markers extend down the full height of a scope. With the "codeOnly" option, indentation markers terminate at the last nonempty line in a scope. Defaults to "fullScope".

• thickness

  Integer that determines the thickness in pixels of the indentation markers. Defaults to 1.

• activeThickness

  Integer that determines the thickness in pixels of the active indentation markers. If undefined or null then thickness will be used. Defaults to undefined.

• colors

  Object that determines the colors of the indentation markers.

  • light

    String that determines the color of the markers when the editor has a light theme. Defaults to #F0F1F2.

  • dark

    String that determines the color of the markers when the editor has a dark theme. Defaults to #2B3245.

  • activeLight

    String that determines the color of the active block marker when the editor has a light theme. Only applies if highlightActiveBlock is true. Defaults to #E4E5E6.

  • activeDark

    String that determines the color of the active block marker when the editor has a dark theme. Only applies if highlightActiveBlock is true. Defaults to #3C445C.

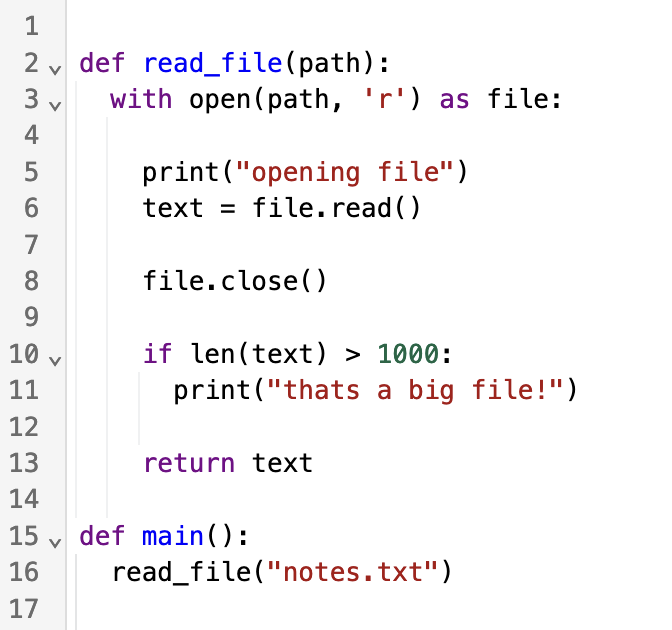

Example

new EditorView({
  state: EditorState.create({
    doc,
    extensions: [
      basicSetup,
      indentationMarkers({
        highlightActiveBlock: false,
        hideFirstIndent: true,
        markerType: "codeOnly",
        thickness: 2,
        colors: {
          light: 'LightBlue',
          dark: 'DarkBlue',
          activeLight: 'LightGreen',
          activeDark: 'DarkGreen',
        }
      })
    ],
  }),
  parent: document.querySelector('#editor'),
});
