coursework

This is a big assignment for a course (Internet Database) that I completed independently in my junior year. The website adopts independent design and development from the underlying database, back-end framework, and front-end pages, with basic functions such as demand release, shopping cart, and order processing. It innovatively embeds Intel RealSense gesture recognition technology for login verification. It writes a crawler program to obtain nearly 40,000 handicraft products on Taobao. The database information is huge, and search, classification processing and other work are done.

Installation and deployment

front end

The front-end status of the library is as follows:


						   	      +----------------+
						      +--->crafts require  <-----------------------------+
		                      |   +----------------+							 |
						      | 											     |
						      |	  +----------------+		                     |
						      +--->crafts overview |	   +---------------+     |
						      |   +----------------+  +---->publish needs  +--(json)
	+-------+                 |						  |	   +---------------+
	|       |    			  |                       |
	| index |  			      |   +---------------+   |	   +---------------+
	|       +--(login/regist)-+--->user management+---+----> profile	   |
	+-------+  	 		      |   +---------------+   |	   +---------------+
						      |                       |
						      |						  |    +--------------+
						      |                       +----> my orders    |
						      |   +---------------+		   +--------------+
						      +--->product detail |
						 	      +---------------+

This figure only shows the correlation between web pages/status and cannot describe all routing and jump rules.
Try to represent different web page public templates together. For example, if the user information management is in a modified state, it can be used to modify the current user profile, otherwise it is used to display other people's profile.

rear end

Developed using php, providing MVC framework

User Management
Order Management
Requirements Management
Session management

database

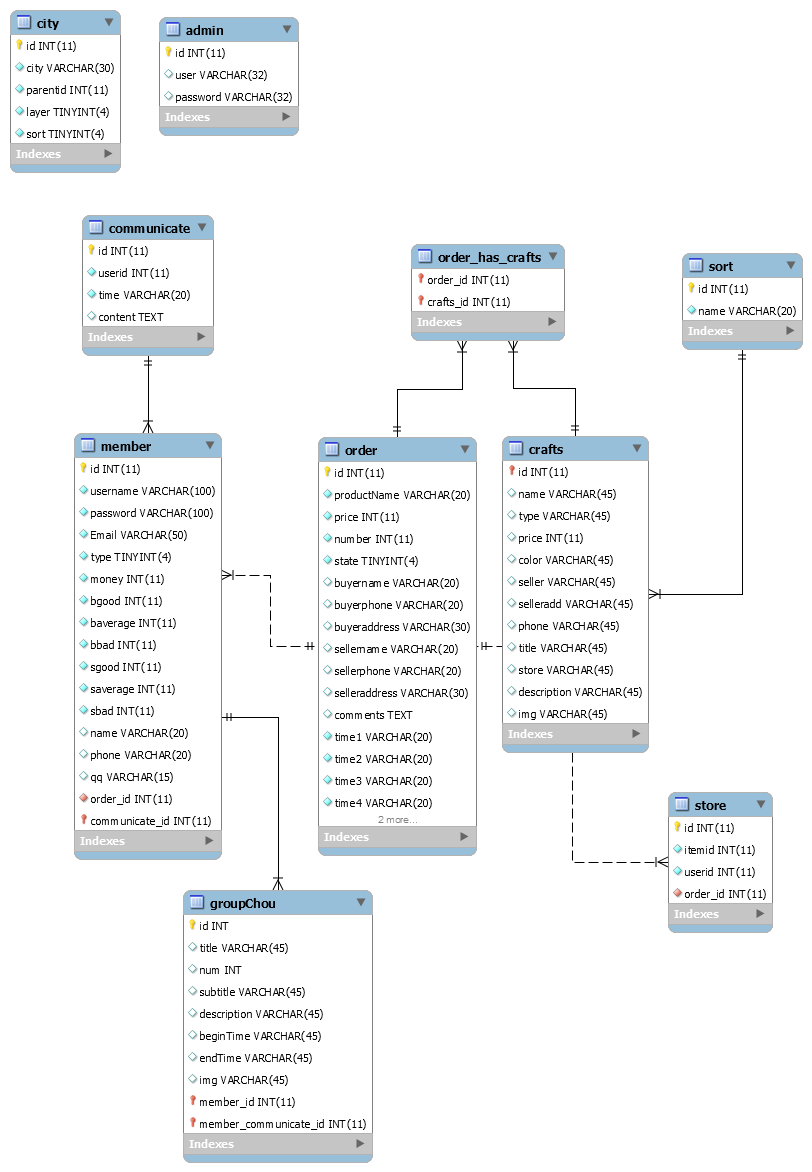

ER picture
SQL:

 -- MySQL Script generated by MySQL Workbench
-- 12/01/15 16:12:22
-- Model: New Model    Version: 1.0
-- MySQL Workbench Forward Engineering

SET @OLD_UNIQUE_CHECKS = @@UNIQUE_CHECKS, UNIQUE_CHECKS = 0 ;
SET @OLD_FOREIGN_KEY_CHECKS = @@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS = 0 ;
SET @OLD_SQL_MODE = @@SQL_MODE, SQL_MODE = ' TRADITIONAL,ALLOW_INVALID_DATES ' ;

-- -----------------------------------------------------
-- Schema mydb
-- -----------------------------------------------------
-- -----------------------------------------------------
-- Schema handicrafts
-- -----------------------------------------------------

-- -----------------------------------------------------
-- Schema handicrafts
-- -----------------------------------------------------
CREATE SCHEMA IF NOT EXISTS ` handicrafts ` DEFAULT CHARACTER SET latin1 ;
USE ` handicrafts ` ;

-- -----------------------------------------------------
-- Table `handicrafts`.`admin`
-- -----------------------------------------------------
CREATE TABLE IF NOT EXISTS ` handicrafts ` . ` admin ` (
  ` id ` INT ( 11 ) NOT NULL AUTO_INCREMENT,
  ` user ` VARCHAR ( 32 ) NULL DEFAULT NULL ,
  ` password ` VARCHAR ( 32 ) NULL DEFAULT NULL ,
  PRIMARY KEY ( ` id ` ))
ENGINE = InnoDB
DEFAULT CHARACTER SET = utf8;


-- -----------------------------------------------------
-- Table `handicrafts`.`city`
-- -----------------------------------------------------
CREATE TABLE IF NOT EXISTS ` handicrafts ` . ` city ` (
  ` id ` INT ( 11 ) NOT NULL AUTO_INCREMENT,
  ` city ` VARCHAR ( 30 ) NOT NULL ,
  ` parentid ` INT ( 11 ) NOT NULL DEFAULT ' 0 ' ,
  ` layer ` TINYINT ( 4 ) NOT NULL DEFAULT ' 1 ' ,
  ` sort ` TINYINT ( 4 ) NOT NULL DEFAULT ' 1 ' ,
  PRIMARY KEY ( ` id ` ))
ENGINE = InnoDB
DEFAULT CHARACTER SET = utf8;


-- -----------------------------------------------------
-- Table `handicrafts`.`communicate`
-- -----------------------------------------------------
CREATE TABLE IF NOT EXISTS ` handicrafts ` . ` communicate ` (
  ` id ` INT ( 11 ) NOT NULL AUTO_INCREMENT,
  ` userid ` INT ( 11 ) NOT NULL ,
  ` time ` VARCHAR ( 20 ) NOT NULL DEFAULT ' 0 ' ,
  ` content ` TEXT NULL DEFAULT NULL ,
  PRIMARY KEY ( ` id ` ))
ENGINE = InnoDB
DEFAULT CHARACTER SET = utf8;


-- -----------------------------------------------------
-- Table `handicrafts`.`sort`
-- -----------------------------------------------------
CREATE TABLE IF NOT EXISTS ` handicrafts ` . ` sort ` (
  ` id ` INT ( 11 ) NOT NULL AUTO_INCREMENT,
  ` name ` VARCHAR ( 20 ) NOT NULL DEFAULT ' 0 ' ,
  PRIMARY KEY ( ` id ` ))
ENGINE = InnoDB
DEFAULT CHARACTER SET = utf8;


-- -----------------------------------------------------
-- Table `handicrafts`.`crafts`
-- -----------------------------------------------------
CREATE TABLE IF NOT EXISTS ` handicrafts ` . ` crafts ` (
  ` id ` INT ( 11 ) NOT NULL ,
  ` name ` VARCHAR ( 45 ) NULL DEFAULT NULL ,
  ` type ` VARCHAR ( 45 ) NULL DEFAULT NULL ,
  ` price ` INT ( 11 ) NULL DEFAULT NULL ,
  ` color ` VARCHAR ( 45 ) NULL DEFAULT NULL ,
  ` seller ` VARCHAR ( 45 ) NULL DEFAULT NULL ,
  ` selleradd ` VARCHAR ( 45 ) NULL DEFAULT NULL ,
  ` phone ` VARCHAR ( 45 ) NULL DEFAULT NULL ,
  ` title ` VARCHAR ( 45 ) NULL DEFAULT NULL ,
  ` store ` VARCHAR ( 45 ) NULL DEFAULT NULL ,
  ` description ` VARCHAR ( 45 ) NULL DEFAULT NULL ,
  ` img ` VARCHAR ( 45 ) NULL DEFAULT NULL ,
  PRIMARY KEY ( ` id ` ),
  CONSTRAINT ` fk_crafts_sort1 `
    FOREIGN KEY ( ` id ` )
    REFERENCES ` handicrafts ` . ` sort ` ( ` id ` )
    ON DELETE NO ACTION
    ON UPDATE NO ACTION)
ENGINE = InnoDB
DEFAULT CHARACTER SET = utf8;


-- -----------------------------------------------------
-- Table `handicrafts`.`order`
-- -----------------------------------------------------
CREATE TABLE IF NOT EXISTS ` handicrafts ` . ` order ` (
  ` id ` INT ( 11 ) NOT NULL AUTO_INCREMENT,
  ` productName ` VARCHAR ( 20 ) NOT NULL ,
  ` price ` INT ( 11 ) NOT NULL ,
  ` number ` INT ( 11 ) NOT NULL ,
  ` state ` TINYINT ( 4 ) NOT NULL DEFAULT ' 0 ' ,
  ` buyername ` VARCHAR ( 20 ) NULL DEFAULT NULL ,
  ` buyerphone ` VARCHAR ( 20 ) NULL DEFAULT NULL ,
  ` buyeraddress ` VARCHAR ( 30 ) NULL DEFAULT NULL ,
  ` sellername ` VARCHAR ( 20 ) NULL DEFAULT NULL ,
  ` sellerphone ` VARCHAR ( 20 ) NULL DEFAULT NULL ,
  ` selleraddress ` VARCHAR ( 30 ) NULL DEFAULT NULL ,
  ` comments ` TEXT NULL DEFAULT NULL ,
  ` time1 ` VARCHAR ( 20 ) NOT NULL DEFAULT ' 0 ' ,
  ` time2 ` VARCHAR ( 20 ) NOT NULL DEFAULT ' 0 ' ,
  ` time3 ` VARCHAR ( 20 ) NOT NULL DEFAULT ' 0 ' ,
  ` time4 ` VARCHAR ( 20 ) NOT NULL DEFAULT ' 0 ' ,
  ` bcomment ` TEXT NULL DEFAULT NULL ,
  ` somment ` TEXT NULL DEFAULT NULL ,
  PRIMARY KEY ( ` id ` ))
ENGINE = InnoDB
DEFAULT CHARACTER SET = utf8;


-- -----------------------------------------------------
-- Table `handicrafts`.`member`
-- -----------------------------------------------------
CREATE TABLE IF NOT EXISTS ` handicrafts ` . ` member ` (
  ` id ` INT ( 11 ) NOT NULL AUTO_INCREMENT,
  ` username ` VARCHAR ( 100 ) NOT NULL ,
  ` password ` VARCHAR ( 100 ) NOT NULL ,
  ` Email ` VARCHAR ( 50 ) NOT NULL DEFAULT ' 0 ' ,
  ` type ` TINYINT ( 4 ) NOT NULL DEFAULT ' 0 ' ,
  ` money ` INT ( 11 ) NOT NULL DEFAULT ' 0 ' ,
  ` bgood ` INT ( 11 ) NOT NULL DEFAULT ' 0 ' ,
  ` baverage ` INT ( 11 ) NOT NULL DEFAULT ' 0 ' ,
  ` bbad ` INT ( 11 ) NOT NULL DEFAULT ' 0 ' ,
  ` sgood ` INT ( 11 ) NOT NULL DEFAULT ' 0 ' ,
  ` saverage ` INT ( 11 ) NOT NULL DEFAULT ' 0 ' ,
  ` sbad ` INT ( 11 ) NOT NULL DEFAULT ' 0 ' ,
  ` name ` VARCHAR ( 20 ) NULL DEFAULT NULL ,
  ` phone ` VARCHAR ( 20 ) NULL DEFAULT NULL ,
  ` qq ` VARCHAR ( 15 ) NULL DEFAULT NULL ,
  ` order_id ` INT ( 11 ) NOT NULL ,
  ` communicate_id ` INT ( 11 ) NOT NULL ,
  PRIMARY KEY ( ` id ` , ` communicate_id ` ),
  UNIQUE INDEX ` username ` ( ` username ` ASC ),
  INDEX ` fk_member_order_idx ` ( ` order_id ` ASC ),
  INDEX ` fk_member_communicate1_idx ` ( ` communicate_id ` ASC ),
  CONSTRAINT ` fk_member_communicate1 `
    FOREIGN KEY ( ` communicate_id ` )
    REFERENCES ` handicrafts ` . ` communicate ` ( ` id ` )
    ON DELETE NO ACTION
    ON UPDATE NO ACTION,
  CONSTRAINT ` fk_member_order `
    FOREIGN KEY ( ` order_id ` )
    REFERENCES ` handicrafts ` . ` order ` ( ` id ` )
    ON DELETE NO ACTION
    ON UPDATE NO ACTION)
ENGINE = InnoDB
DEFAULT CHARACTER SET = utf8;


-- -----------------------------------------------------
-- Table `handicrafts`.`order_has_crafts`
-- -----------------------------------------------------
CREATE TABLE IF NOT EXISTS ` handicrafts ` . ` order_has_crafts ` (
  ` order_id ` INT ( 11 ) NOT NULL ,
  ` crafts_id ` INT ( 11 ) NOT NULL ,
  PRIMARY KEY ( ` order_id ` , ` crafts_id ` ),
  INDEX ` fk_order_has_crafts_crafts1_idx ` ( ` crafts_id ` ASC ),
  INDEX ` fk_order_has_crafts_order1_idx ` ( ` order_id ` ASC ),
  CONSTRAINT ` fk_order_has_crafts_crafts1 `
    FOREIGN KEY ( ` crafts_id ` )
    REFERENCES ` handicrafts ` . ` crafts ` ( ` id ` )
    ON DELETE NO ACTION
    ON UPDATE NO ACTION,
  CONSTRAINT ` fk_order_has_crafts_order1 `
    FOREIGN KEY ( ` order_id ` )
    REFERENCES ` handicrafts ` . ` order ` ( ` id ` )
    ON DELETE NO ACTION
    ON UPDATE NO ACTION)
ENGINE = InnoDB
DEFAULT CHARACTER SET = utf8;


-- -----------------------------------------------------
-- Table `handicrafts`.`store`
-- -----------------------------------------------------
CREATE TABLE IF NOT EXISTS ` handicrafts ` . ` store ` (
  ` id ` INT ( 11 ) NOT NULL AUTO_INCREMENT,
  ` itemid ` INT ( 11 ) NOT NULL ,
  ` userid ` INT ( 11 ) NOT NULL ,
  ` order_id ` INT ( 11 ) NOT NULL ,
  PRIMARY KEY ( ` id ` ),
  INDEX ` fk_store_order1_idx ` ( ` order_id ` ASC ),
  CONSTRAINT ` fk_store_order1 `
    FOREIGN KEY ( ` order_id ` )
    REFERENCES ` handicrafts ` . ` order ` ( ` id ` )
    ON DELETE NO ACTION
    ON UPDATE NO ACTION)
ENGINE = InnoDB
DEFAULT CHARACTER SET = utf8;


-- -----------------------------------------------------
-- Table `handicrafts`.`groupChou`
-- -----------------------------------------------------
CREATE TABLE IF NOT EXISTS ` handicrafts ` . ` groupChou ` (
  ` id ` INT NOT NULL AUTO_INCREMENT,
  ` title ` VARCHAR ( 45 ) NULL ,
  ` num ` INT NULL ,
  ` subtitle ` VARCHAR ( 45 ) NULL ,
  ` description ` VARCHAR ( 45 ) NULL ,
  ` beginTime ` VARCHAR ( 45 ) NULL ,
  ` endTime ` VARCHAR ( 45 ) NULL ,
  ` img ` VARCHAR ( 45 ) NULL ,
  PRIMARY KEY ( ` id ` ))
ENGINE = InnoDB;


SET SQL_MODE = @OLD_SQL_MODE;
SET FOREIGN_KEY_CHECKS = @OLD_FOREIGN_KEY_CHECKS;
SET UNIQUE_CHECKS = @OLD_UNIQUE_CHECKS;

Citation instructions and code statistics

The reference instructions for third-party library are as follows:

Quote content	Quote Source	effect
Bootstrap 3.0	http://getbootstrap.com/	UI framework and basic CSS components
Jquery1.9.2	http://jquery.com	Used for front-end ajax, interactive effects, and function selectors
Intel RealSense SDK	https://software.intel.com/zh-cn/intel-realsense-sdk	For gesture verification
Jsoup	http://jsoup.org/	Used to crawl data information
Gaode map API	http://ditu.amap.com/	Used for location services
Discuz!X3.5	http://www.discuz.net/	Used forum services
baidu share	http://share.baidu.com/	Provide product sharing functions for multiple social network interfaces such as WeChat

The project code statistics are as follows:

language	JavaScript	HTML/CSS	C++/Java	PHP
Original code lines (excluding comments)	2488	1179	745	3872
Third-party code library	1033	700	none	none

(Jquery1.8.js is calculated by 1 line / Jquery-ui.js is calculated by 100 lines)

Innovation points

The innovative point of the project is that Intel RealSense gesture recognition technology is embedded for login verification, replacing complex verification code input, and improving user experience.
It has crawler-friendly site search function
There are a lot of Ajax interaction effects on the front end to enhance user experience
There is cache management for user uploads, avoid duplicate file submissions, and enhance server performance
md5 encryption technology makes the storage of important information safer
Embed some h5 games
